Storage solutions that impress
Whether for bar stock or sheet metal, our tower storage systems offer the ideal solution for your operation:
- Space-saving marvel KASTOecostore: A standardised tower storage system for high variety – perfectly organised and with a minimal footprint.
- Efficiency champion UNITOWER: A customisable tower storage solution with high load capacity and multiple station options for smooth material flow in limited space.
Take advantage of attractive special conditions when you order by the end of August 2025!
| KASTOecostore bar stock | UNITOWER bar stock | KASTOecostore sheet metal | UNITOWER sheet metal | |
|---|---|---|---|---|
| Loading per storage | 1,2 / 3 t (2600 - 6600 lbs) | 1 - 5 t (2200 - 11000 lbs) | 1,2 / 3 t (2600 - 6600 lbs) | 1 - 5 t (2200 - 11000 lbs) |
| Economic storage size | 5 - 72 locations | 10 - 100 locations | 5 - 52 locations | 10 - 100 locations |
| Storage length | 6,5 m (21 ft) | 3 - 14 m (10 - 46 ft) | 3 / 4 m (10 / 13 ft) | 2 - 8 m (7 - 26 ft) |
| System height | up to 8 m (up to 26 ft) | 4 - 24 m (13 - 79 ft) | up to 8 m (up to 26 ft) | 4 - 24 m (13 - 79 ft) |
| Number of accesses per hour (per OGC) | 1 - 15 | 1 - 30 | 1 - 15 | 1 - 30 |

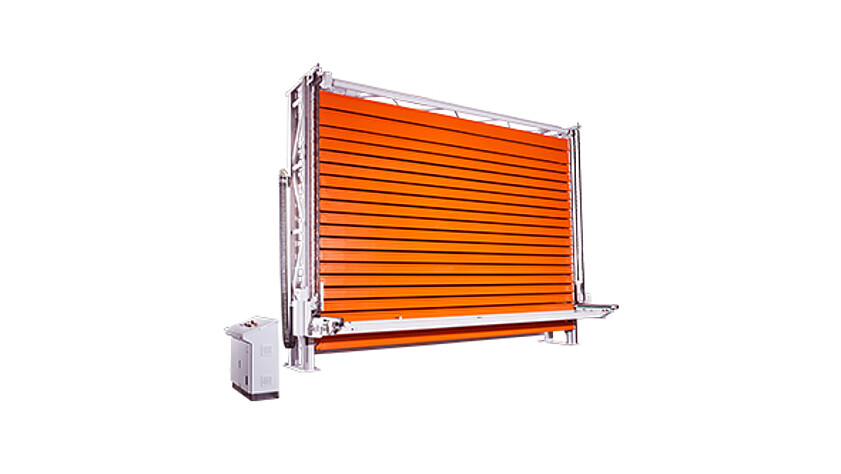

Space miracle KASTOecostore bar stock
The KASTOecostore for bar stock features height-optimised compartment layout for high storage density. This tower storage system is available in single- or double-sided configurations. Cost-effective and automated, it allows direct access without additional lifting equipment and is easy to operate via storage location selection.

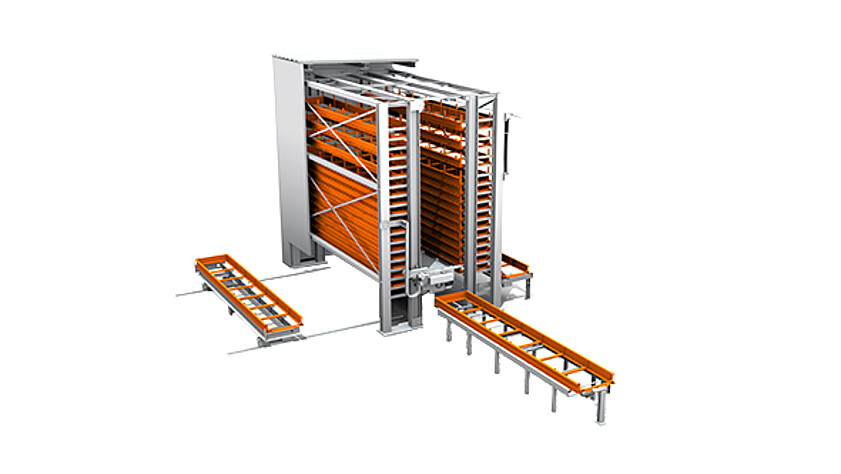

Efficiency champion UNITOWER bar stock
The UNITOWER offers high efficiency and load capacity to handle even larger loads. Infeed and outfeed stations can be added individually and customised to your requirements, providing a tailored and efficient storage logistics solution.

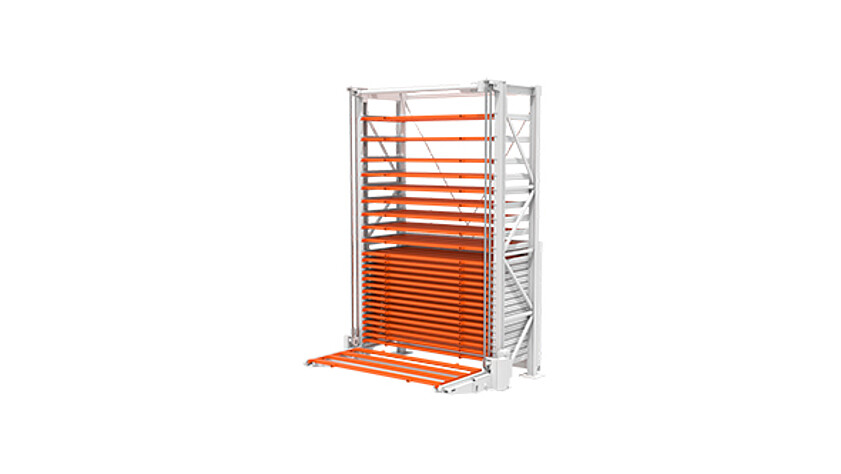

Space miracle KASTOecostore sheet metal
The KASTOecostore for sheet metal provides a safe and efficient solution for material handling. Loading assistance with lifting pins and locking bolts for pallets secure the sheet metal and make handling easier. The automated tower storage saves time by providing direct access without additional lifting equipment and offers simple operation via storage location selection.

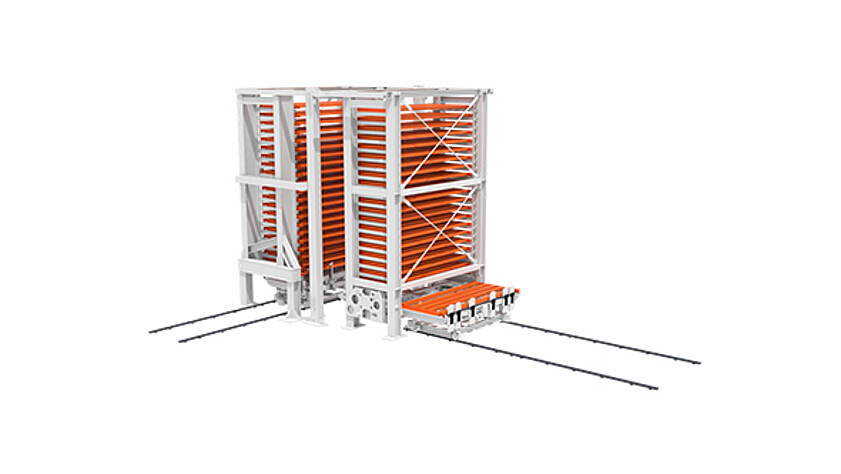

Efficiency champion UNITOWER sheet metal
The UNITOWER for sheet metal is ideal for sheet metal processing and can be adjusted to different loading heights. The stations can be individually configured according to your processes to ensure efficient material logistics. Additionally, the integration of sheet metal processing machines is easily possible to ensure a smooth material flow.

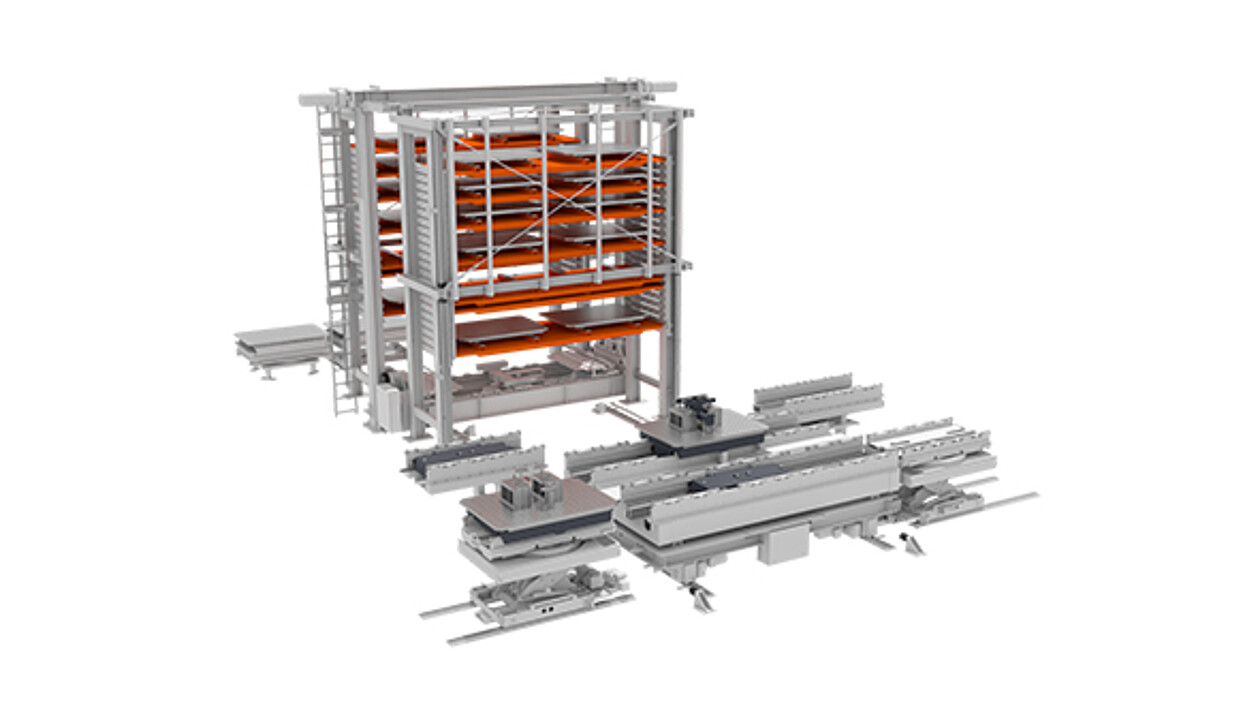

The UNITOWER cnc continuously supplies CNC machining centres and milling machines with pre-equipped pallets. The loading process takes place in parallel with machine operation, preventing downtime. Unmanned operation of the entire system, even at night, is easily possible.
| Loading per storage: | 1 t - 5 t |
|---|---|
| Storage length: | 2 m - 4 m |
| Storage size: | 10 - 90 locations |
