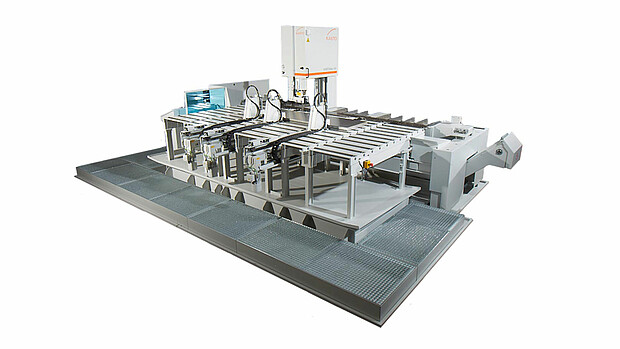

KASTObloc A 5
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Vertical cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 600 mm / 23.62 inch |
| Material height: | 250 mm / 9.84 inch |
KASTO block and plate sawing machines
Is it your job to cut different dimensions from different plates and blocks from your existing material using the longitudinal cutting method? Does the majority of your cutting tasks consist of cutting light to medium blocks or plates?

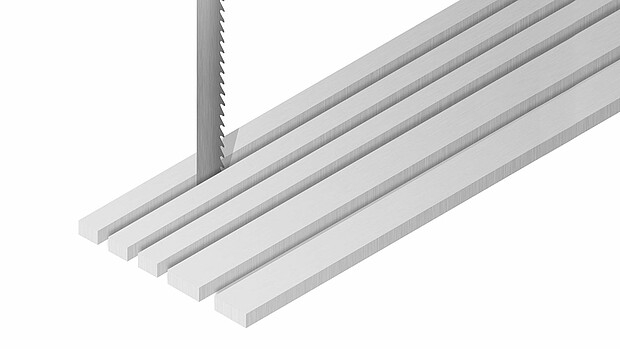

Then you will find the right sawing machine for your cutting task here. By utilizing the longitudinal cutting method, KASTO block and plate sawing machines make it possible to configure different cross-section dimensions from billets and plates, rectangular or flat materials.

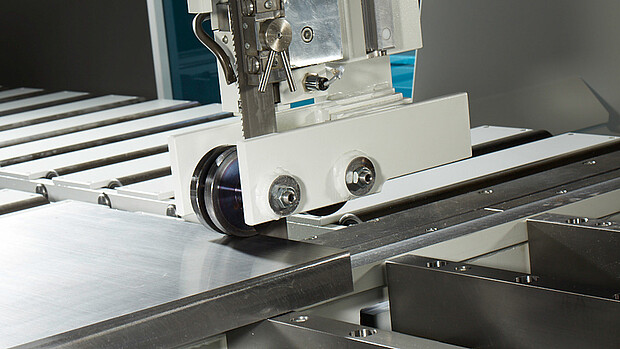

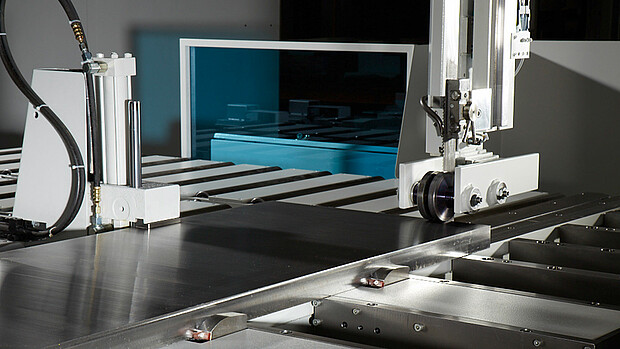

The automatic material feed device positions the blocks and plates precisely in the desired position.
KASTObloc A 5:
- Ideal for cutting remnant pieces

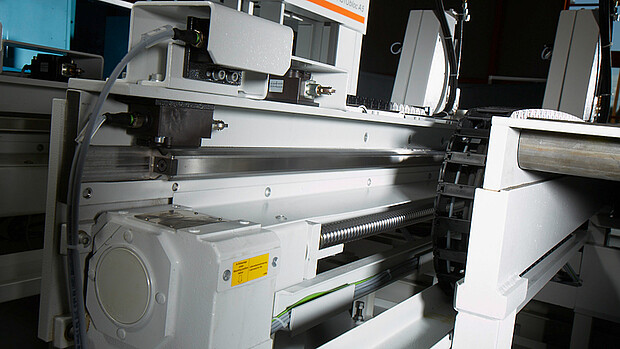

- The footprint is reduced by approx. 50% since the sawing machine moves
- The traversing and pivoting operating panel guarantees maximum overview and safety.
- Highly dynamic and excellent material handling
- The machine is installed on the floor and can be repositioned if needed.
- Integrated powered chip removal brush, coolant system and chip conveyor (discharge level 745 mm)

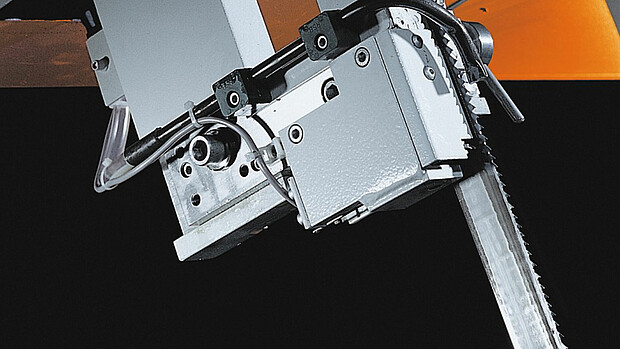

- Saw blade minimum speed control

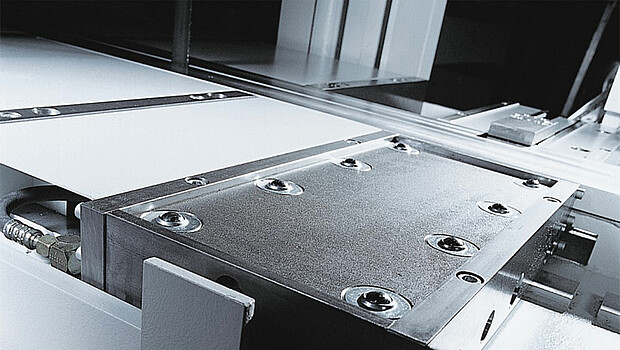

- Plate feed unit
Downloads
Technical Data
| Cutting height automatic operation | 250 mm | 9.84 in |
| Available with the following cutting lengths | ||
| Max. cutting length | 460 mm | 18.11 in |
| Max. cutting length | 360 mm | 14.17 in |
| Max. cutting length | 360 mm | 14.17 in |
| Max. cutting length | 340 mm | 13.39 in |
| General | ||
| Width incl. grating | 3850 mm | 151.57 in |
| Height without laser | 3200 mm | 125.98 in |
| Height with laser | 3200 mm | 125.98 in |
| Plate feed unit | ||
| Min. height of plate | 10 mm | 0.39 in |
| Max. height of plate | 250 mm | 9.84 in |
| Shortest cut-off length | 10 mm | 0.39 in |
| Max. cut-off length | 620 mm | 24.41 in |
| Remnant length | 50 mm | 1.97 in |
| Max. width of plate | 1500 mm | 59.06 in |
| Stroke | 1530 mm | 60.24 in |
| Min. length of plate | 1000 mm | 39.37 in |
| Max. length of plate | depending on cutting length | |
| Max. weight of plate | 10000 kg | 9700.34 lbm |
| With cutting length 2100 mm | ||
| Supporting surface of front table (L x W) | 2100 x 1500 mm | 82.68 x 59.06 in |
| Supporting surface of back table (L x W) | 2100 x 660 mm | 82.68 x 25.98 in |
| Max. table load outer table | 5000 kg | 9700.34 lbm |
| Max. table load inner table | 3500 kg | 9700.34 lbm |
| Cutting height individual cut | 540 mm | 21.26 in |
| Length incl. chip conveyor | 4990 mm | 196.46 in |
| Height of table support | 1200 mm | 47.24 in |
| Total weight | 8000 kg | 9700.34 lbm |
| With cutting length 3100 mm | ||
| Supporting surface of front table (L x W) | 3100 x 1500 mm | 122.05 x 59.06 in |
| Supporting surface of back table (L x W) | 3100 x 660 mm | 122.05 x 25.98 in |
| Max. table load outer table | 7500 kg | 9700.34 lbm |
| Max. table load inner table | 4000 kg | 9700.34 lbm |
| Cutting height individual cut | 540 mm | 21.26 in |
| Length incl. chip conveyor | 5990 mm | 235.83 in |
| Height of table support | 1200 mm | 47.24 in |
| Total weight | 10000 kg | 9700.34 lbm |
| With cutting length 4100 mm | ||
| Supporting surface of front table (L x W) | 4100 x 1500 mm | 161.42 x 59.06 in |
| Supporting surface of back table (L x W) | 4100 x 660 mm | 161.42 x 25.98 in |
| Max. table load outer table | 10000 kg | 9700.34 lbm |
| Max. table load inner table | 4000 kg | 9700.34 lbm |
| Cutting height individual cut | 540 mm | 21.26 in |
| Length incl. chip conveyor | 6990 mm | 275.2 in |
| Height of table support | 1200 mm | 47.24 in |
| Total weight | 12000 kg | 9700.34 lbm |
| With cutting length 5100 mm | ||
| Supporting surface of front table (L x W) | 5100 x 1500 mm | 200.79 x 59.06 in |
| Supporting surface of back table (L x W) | 5100 x 660 mm | 200.79 x 25.98 in |
| Max. table load outer table | 12500 kg | 9700.34 lbm |
| Max. table load inner table | 4000 kg | 9700.34 lbm |
| Cutting height individual cut | 490 mm | 19.29 in |
| Length incl. chip conveyor | 7990 mm | 314.57 in |
| Height of table support | 1300 mm | 51.18 in |
| Total weight | 14000 kg | 9700.34 lbm |
| Length (material feed 1500 mm) | 3570 mm | 140.55 in |
| Length (option: material feed 3000 mm) | 5070 mm | 199.61 in |
| Width | 2920 mm | 114.96 in |
| Height, machine head in highest position | 1950 mm | 76.77 in |
| Material support height | 700 mm | 27.56 in |
| Total weight (material feed 1500 mm) | 4400 kg | 9700.34 lbm |
| Total weight (option: material feed 3000 mm) | 4900 kg | 10802.65 lbm |
| Power of saw motor | 4 kW | 5.36 hp |
| Total connected load | 6 kW | 8.05 hp |
| Cutting speed, infinitely variable | 17 - 110 m/min | 55.77 - 360.89 ft/min |
| Saw feed, infinitely variable | 1 - 250 mm/min | 0.04 - 9.84 in/min |
| Rapid motion | 8 m/min | 26.25 ft/min |

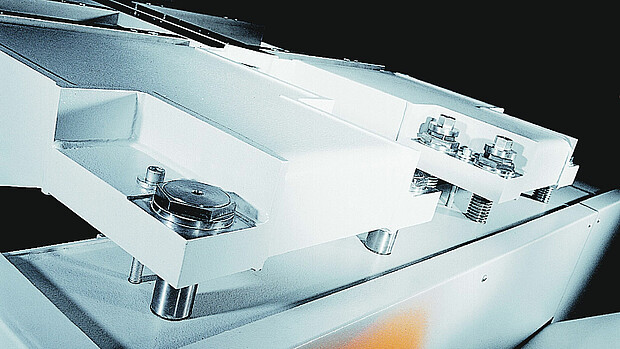

| Dimensions of saw blade | 5450 x 41 x 1.3 mm | 214.57 x 1.61 x 0.05 in |
| or | 5450 x 54 x 1.3 mm | 214.57 x 2.13 x 0.05 in |
