KASTOmicut U 2.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight and mitre cut |
| Automation: | Semi automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 310 mm / 12.2 inch |
| Material height: | 260 mm / 10.24 inch |

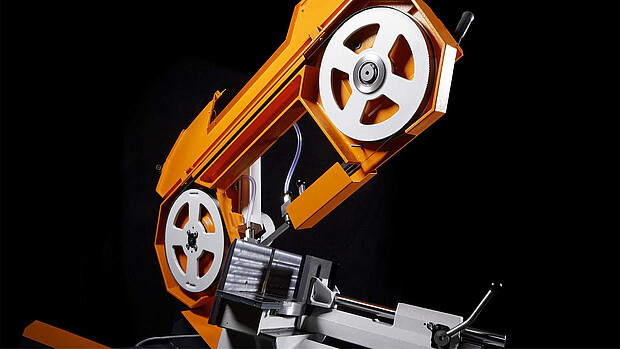

Semi-automatic swiveling frame bandsaw
Semi-automatic band sawing machine of very sturdy construction, with infi nitely cutting speed, for solutions of all kinds of cutting tasks, 90 ° and mitre cutting (-45°/+60°) of tubes, structural and solid material in work-shops. The infi nitely variable hydraulic saw feed and the hydraulic material clamping en-sure a semi-automatic, sensitive and precise cut for longer blade life.
Characteristics:
- Hydraulically controlled saw feed
- Rotary table as material support

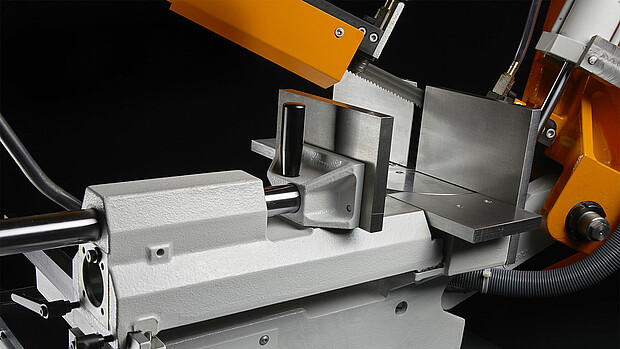

- Hydraulic material clamping
- Infinitely adjustable cutting speed

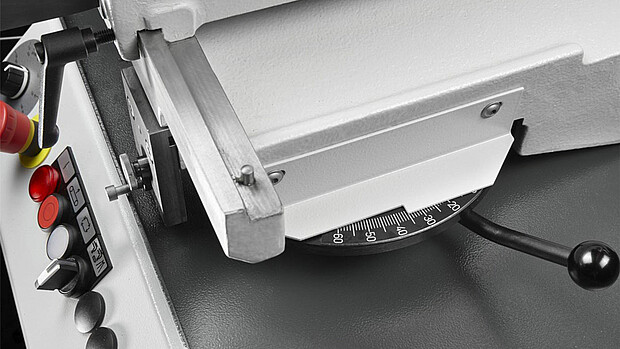

- Mitre angle on both sides from +60° to -45°
This product is only available in European markets.
Downloads
KASTOmicut U 2.6 at the KASTOshop North America
To the KASTOshopKASTOmicut U 2.6 at the KASTOshop Asia Pacific
To the KASTOshopTechnical Data
| Cutting range 90° round (Solid/Tube) | 160 mm | 6.3 in |
| Cutting range 90° flat (W x H) (Tube) | 310 x 260 mm | 12.2 x 10.24 in |
| Cutting range 90° square (Solid/Tube) | 160 x 160 / 260 x 260 mm | 6.3 x 6.3 / 10.24 x 10.24 in |
| Cutting range +45° round (Tube) | 220 mm | 8.66 in |
| Cutting range +45° flat (W x H) (Tube) | 200 x 200 mm | 7.87 x 7.87 in |
| Cutting range +60° round (Tube) | 140 mm | 5.51 x 0 in |
| Cutting range +60° flat (W x H) (Tube) | 140 x 140 mm | 5.51 x 5.51 in |
| Cutting range -45° round (Tube) | 240 mm | 9.45 x 0 in |
| Cutting range -45° flat (W x H) (Tube) | 200 x 260 mm | 7.87 x 10.24 in |
| Cutting range -45° square (Tube) | 210 x 210 mm | 8.27 x 8.27 in |
| Shortest remnant length | 30 mm | 1.18 in |
| Length | 760 mm | 29.92 in |
| Width | 1620 mm | 63.78 in |
| Height, saw head lowered position | 1690 mm | 66.54 in |
| Height, saw head in highest position | 2040 mm | 80.31 in |
| Material support height | 950 mm | 37.4 in |
| Total weight | 510 kg | 1124.36 lbm |
| Total power | 2 kW | 2.68 hp |

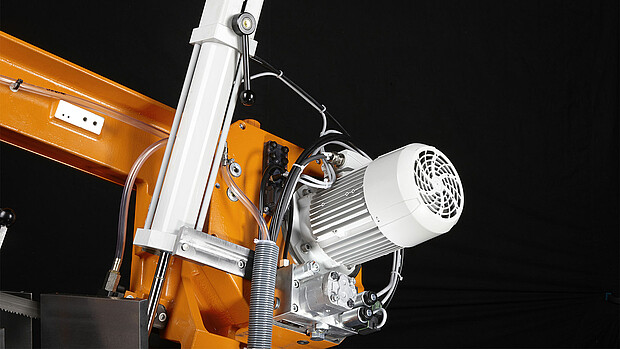

| Saw motor, power – frequency controlled | 1.5 kW | 2.01 hp |
| Cutting speed infinitely variable – frequency controlled | 20 - 110 m/min | 65.62 - 360.89 ft/min |
| Dimensions of saw blade | 3180 x 27 x 0.9 mm | 125.2 x 1.06 x 0.04 in |
| Saw blade guides | lateral and back roller guide, replaceable | |
| Material clamping | mechanical | |
| Cutting feed | hydraulic, infinitely variable | |

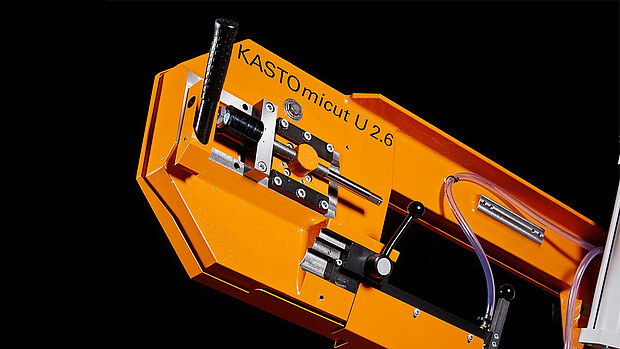

| Saw blade tension | mechanical | |

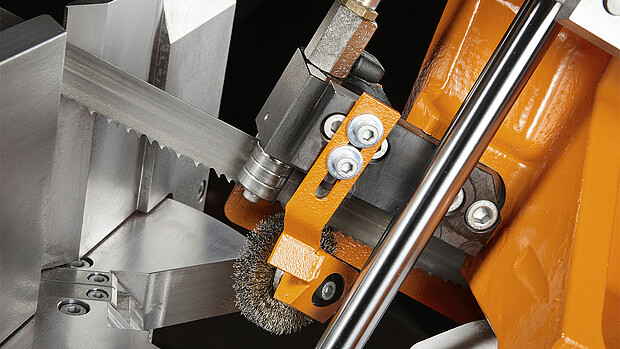

| Saw blade cleaning | by synchronously running, easily replaceable wire brush |
