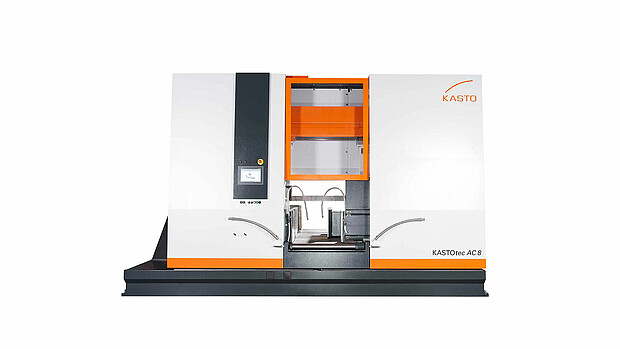

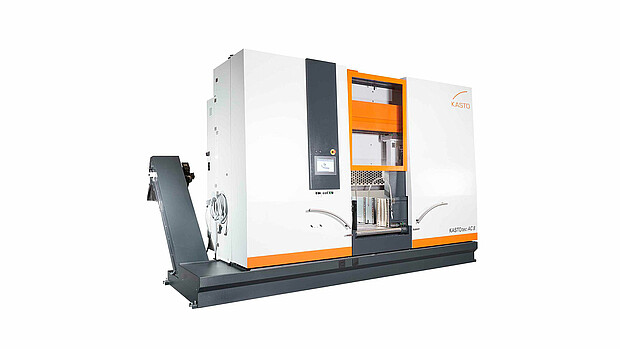

KASTOtec AC 8x10
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel, Steels for special application |
| Material width: | 1100 mm / 43.31 inch |
| Material height: | 830 mm / 32.68 inch |

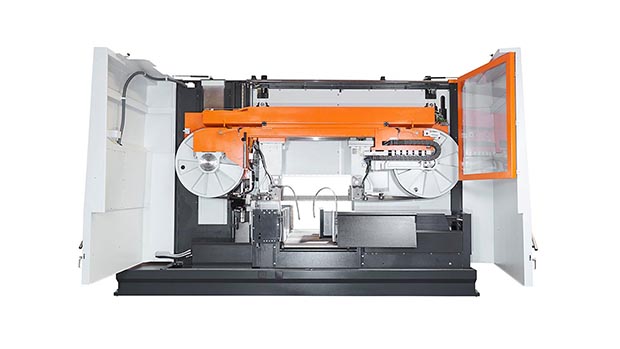

Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of round, square and flat material, of tubes and profiles of all qualities, particularly for tool steels and material which is difficult to cut such as titanium, Hastelloy, Inconel etc.

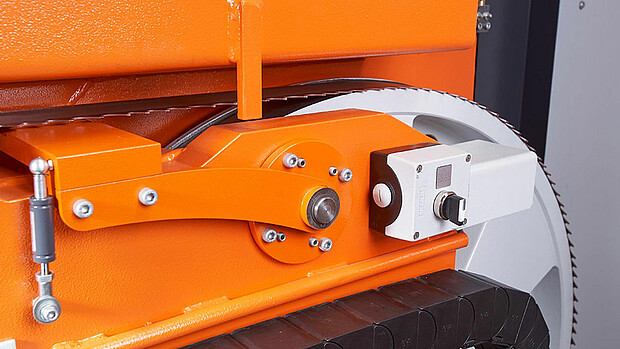

- Sawband guide via hydraulically pretensioned carbide slideways
- Electronic monitoring of the hydraulic blade tension
- Infinitely variable cutting speed, to be adjusted at central control panel
- Fully automatic, rapid height adjustment of the saw unit via light barrier
- Hydraulic horizontal vices, clearance stroke is standard
Downloads
Technical Data
| Cutting range round | 270 x 830 mm | 10.63 x 32.68 in |
| Cutting range square (W x H) | 830 x 830 mm | 32.68 x 32.68 in |
| Cutting range flat (W x H) | 830 x 1100 mm | 32.68 x 43.31 in |
| Clamping range | 270 - 1100 mm | 10.63 - 43.31 in |
| Smallest size to be cut | 20 x 270 mm | 0.79 x 10.63 in |
| Shortest length of cut-off piece | 8 mm | 0.31 in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 50 mm | 1.97 in |
| Shortest remnant length individual cut | 20 mm | 0.79 in |

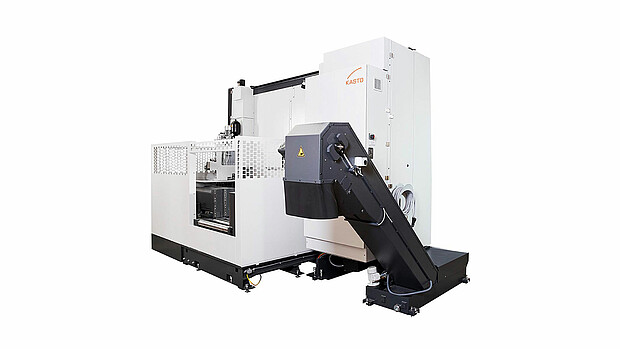

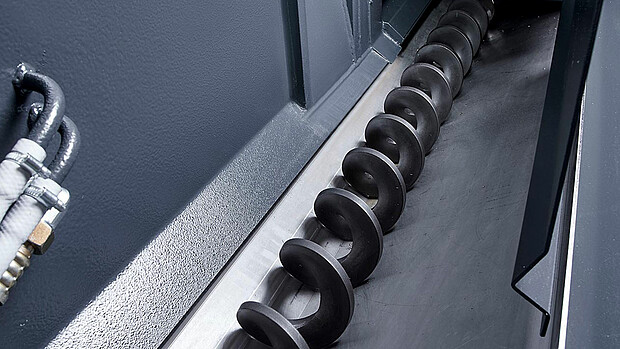

| Length incl. chip conveyor | 2710 mm | 106.69 in |
| Width incl. chip conveyor | 5160 mm | 203.15 in |
| Height | 3140 mm | 123.62 in |
| Material support height | 730 mm | 28.74 in |
| Total weight | 13000 kg | 28660.09 lbm |
| Total connected load | 30 kW | 40.23 hp |
| Power of saw motor | 18.5 kW | 24.81 hp |
| Power at running wheel | 17.5 kW | 23.47 hp |
| Cutting speed infinitely variable with 50 or 60 Hz | 20 - 200 m/min | 65.62 - 656.17 ft/min |
| Saw feed speed | 0.5 - 300 m/min | 1.64 - 984.25 ft/min |
| Automatic material feed length, single stroke | 750 mm | 29.53 in |
| Automatic material feed length, multiple stroke | 9999 mm | 393.66 in |
| Dimensions of saw blade | 9735 x 80 x 1.6 mm | 383.27 x 3.15 x 0.06 in |
