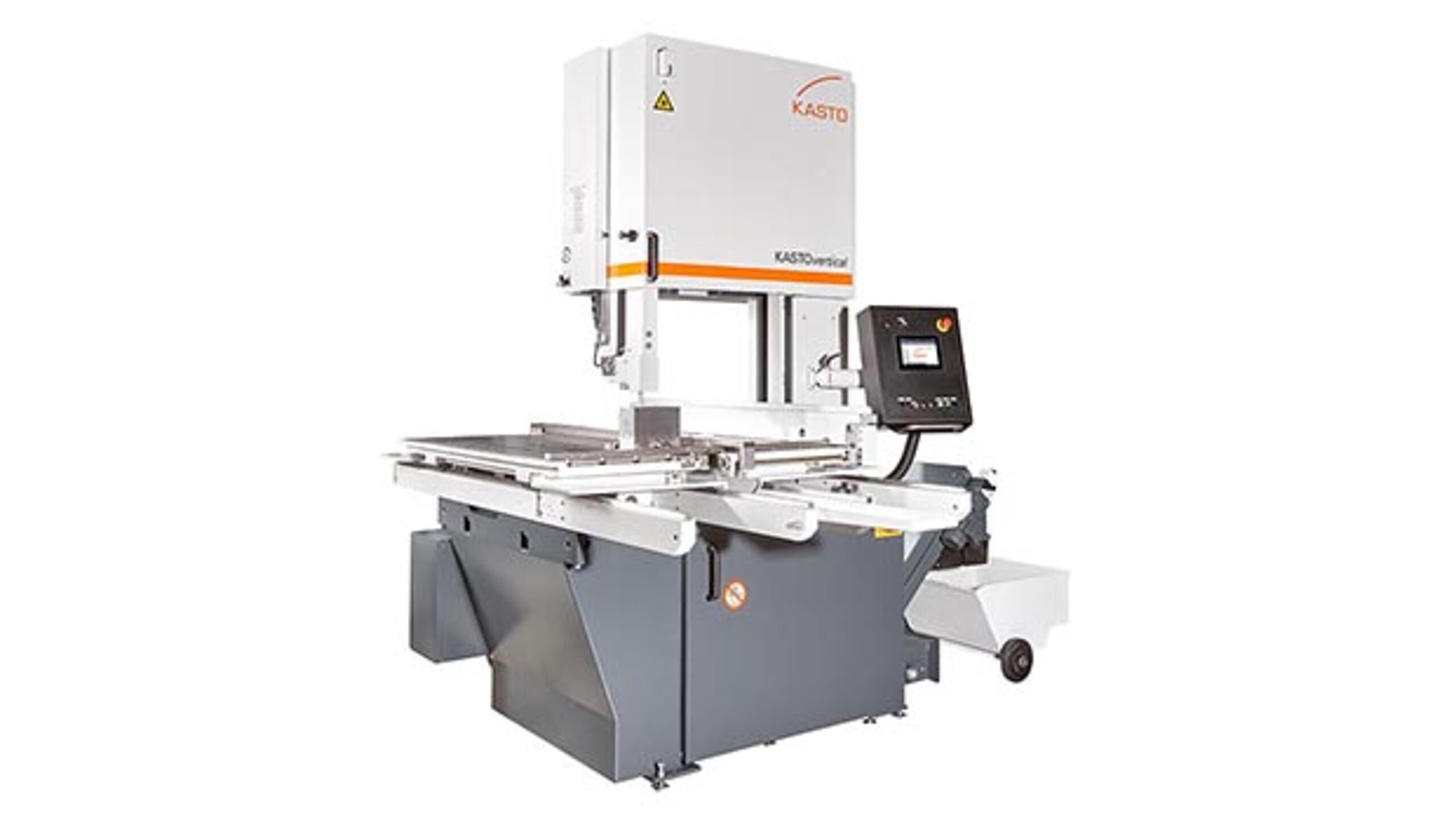

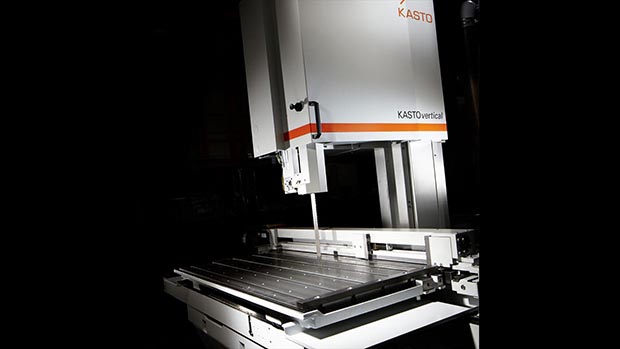

KASTOvertical M
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Vertical cut |
| Automation: | Semi automatic |
| Materials: | Non-ferrous metals and plastics |
| Material width: | 680 mm / 26.77 inch |
| Material height: | 600 mm / 23.62 inch |
By the long cut working method, the vertical KASTO bandsawing machine allows to cut square or flat materials with different sizes of cross section from rolled blocks or rolled plates.
- Movable material support table ensures fast and safe material handling
- Sawband guide via pretensioned carbide glide guides, with quick release for fast blade change
- Cutting speed and cutting feed infinitely adjustable
- Hydraulic, height-adjustable band arm guide
- Hydraulic saw blade clamping, electrically monitored, automatic shut-off in case of breakage
Downloads
Technical Data
| Cutting height without BandControl | 600 mm | 23.62 in |
| Cutting height with BandControl | 560 mm | 22.05 in |
| Max. cutting length | 1260 mm | 49.61 in |
| Cutting depth | 680 mm | 26.77 in |
| Cutting depth with measuring stop (option) | 605 mm | 23.82 in |
| Supporting surface of front table - Length | 1260 mm | 49.61 in |
| Supporting surface of front table - Width | 640 mm | 25.2 in |
| Supporting surface of back table - Length | 1260 mm | 49.61 in |
| Supporting surface of backfront table - Width | 640 mm | 25.2 in |
| Max. table load | 2000 kg | 4409.25 lbm |
| Length | 3110 mm | 122.44 in |
| Width incl. chip tray | 1950 mm | 76.77 in |
| Width incl. chip conveyor (option) | 2520 mm | 99.21 in |
| Height | 3050 mm | 120.08 in |
| Height of table support | 1150 mm | 45.28 in |
| Total weight | 3400 kg | 7495.72 lbm |
| Power | 4 kW | 5.36 hp |
| Total connected load | 6 kW | 8.05 hp |
| Cutting speed | 50 - 500 m/min | 164.04 - 1640.42 ft/min |
| Saw feed speed | 0.5 - 300 mm/min | 0.02 - 11.81 in/min |
| Rapid motion | 2200 mm/min | 86.61 in/min |
| Dimensions of saw blade | 5450 x 41 x 1.3 mm | 214.57 x 1.61 x 0.05 in |
| or | 5450 x 54 x 1.3 mm | 214.57 x 2.13 x 0.05 in |
