UNICOMPACT
| Type: | Bar storage |
|---|---|
| Storage Type: | Overhead system |
| Loading per storage: | 1 t - 8 t / 2204.62 lbs - 17637 lbs |
| Storage length: | 3 m - 14 m / 9.84 ft - 45.93 ft |
| Storage size: | 500 - 9999 Locations |
| Rack support: | Yes |
| Integrated saw possible: | Yes |

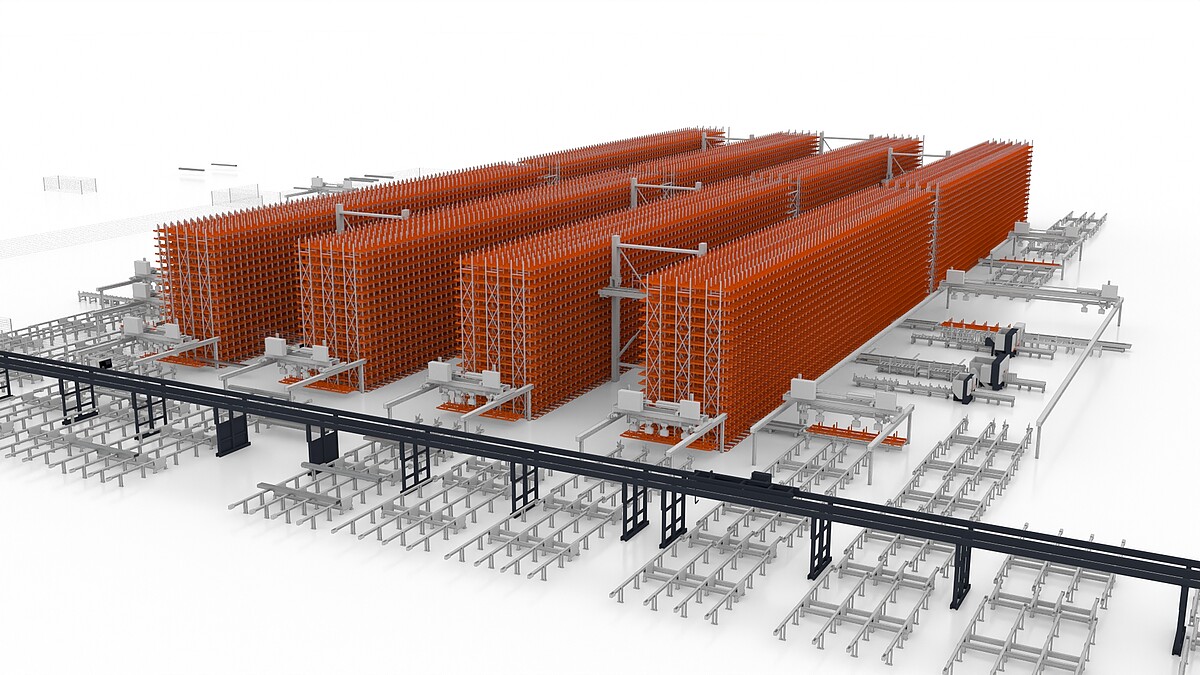

The close dimensions of the operating gantry crane ensure that as much space as possible is used for material storage. Utilizing the principle „Material to Operator“, the UNICOMPACT bar storage system delivers the requested material fast to the outfeed stations. An extensive variety of different station designs increases the efficiency for cutting and commissioning of solids or shapes of steel, aluminum, plastic or non-ferrous materials.
- Building heights 4-26 m (13‘-85.3‘)
- Cassette for 1-8 t (2,200-17,600 lbs.) usable load
- Inventory volume approx. 500-8.000 cassettes – approx.500-40.000 t (1,100,000-88,000,000 lbs)
- Cassette lengths from 3 to 14 m (9.8‘-45.9‘)
- Building carrying design possible
Downloads
Technical Data
| Loading per storage location | 1 - 8 t | 2205 - 17640 lbs |
| Economic storage size | from 500 locations | from 500 locations |
| Economic storage length | 3 - 14 m | 9,84 - 45,93 in |
| Economic system height | 4 - 26 m | 13,12 - 85,3 in |
| Rack supported design possible | yes | yes |
| Number of pick per h (per OGC) | 20 - 60 pro/h | 20 - 60 pro/h |
| Partially integrated saw possible | yes | yes |
| Fully integrated saw possible | yes | yes |
