UNITOWER
| Type: | Bar storage |
|---|---|
| Storage Type: | Tower system |
| Loading per storage: | 1 t - 5 t / 2204.62 lbs - 11023.1 lbs |
| Storage length: | 3 m - 14 m / 9.84 ft - 45.93 ft |
| Storage size: | 10 - 100 Locations |
| Rack support: | Yes |
| Integrated saw possible: | Yes |

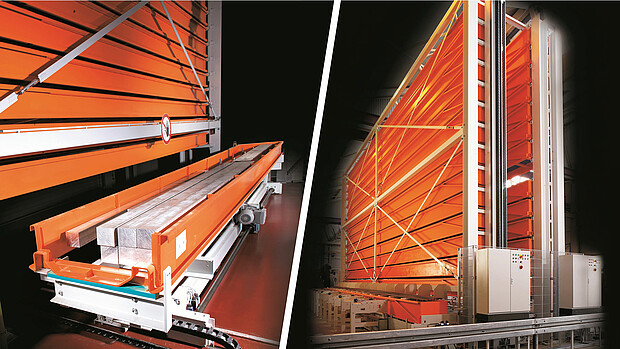

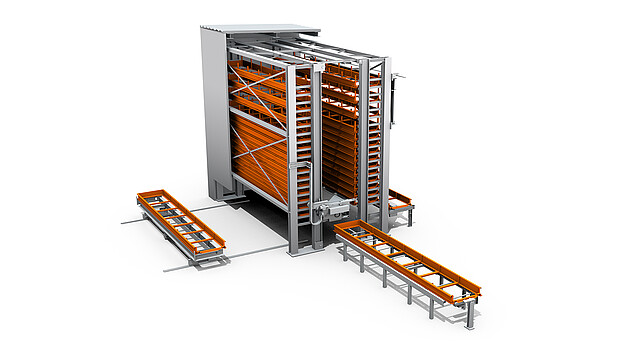

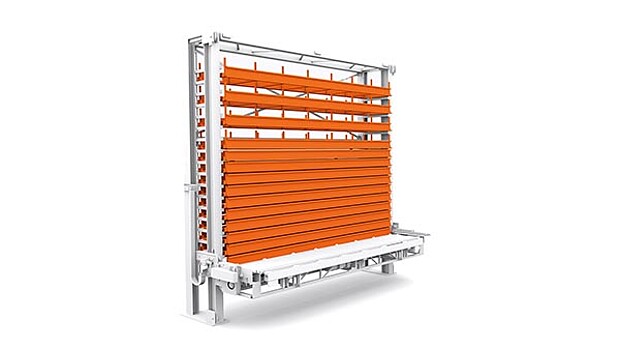

The UNITOWER is suitable to store bars or extrusions as well as sheet metal, plates, Euro pallets or boxes loaded with all different kinds of materials. It can be tailored to customer-specific applications or used as an island solution. Applications for the UNITOWER range from buffer storage systems in manufacturing to small to mid size storage solutions in distribution and warehousing. The UNITOWER optimizes material flow in job shops as well as for window manufacturers or similar industries
- virtually maintenance-free precision roller chains
- lower maintenance costs
- The rack supported building design of the UNITOWER also saves space and taxes
Downloads
Technical Data
| Loading per storage location | 1 - 5 t | 2205 - 11025 lbs |
| Economic storage size | 10 - 100 locations | 10 - 100locations |
| Economic storage length | 3 - 14 m | 9,84 - 45,93 in |
| Economic system height | 4 - 24 m | 13,12 - 78,74 in |
| Rack supported design possible | yes | yes |
| Number of pick per h (per OGC) | 1 - 30 pro/h | 20 - 60 pro/h |
| Partially integrated saw possible | yes | yes |
| Fully integrated saw possible | restricted | restricted |
