KASTOmaxcut A 20
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel, Steels for special application |
| Material width: | 2060 mm / 81.1 inch |
| Material height: | 2060 mm / 81.1 inch |

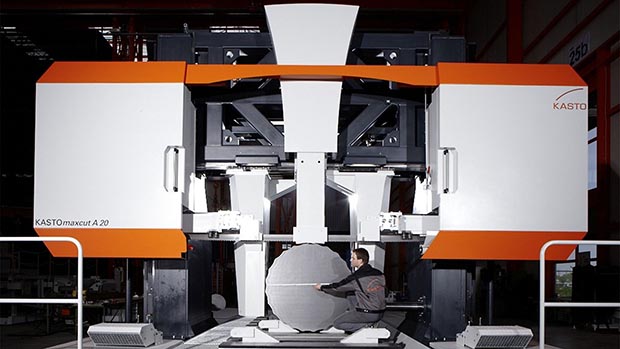

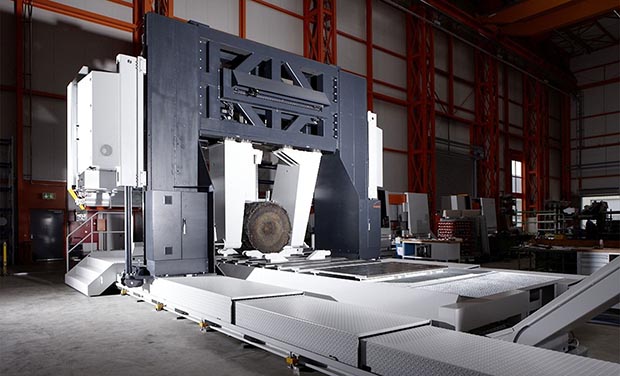

KASTOmaxcut, the automatic high-performance bandsawing machine in gantry design for large material dimensions, slabs, ingot moulds, forged shafts, open-die forgings, marine crank shafts, shafts for turbines, large tools of all qualities and of material which is difficult to cut (e.g. titanium, Hasteloy, Inconel).
- The extremely robust design and the high rigidity of this large bandsaw guarantee good vibration absorption and herewith short cutting times.
- horizontal clamping devices, travelling hydraulically or by means of spindles
- Fully automatic adjustment of saw frame, according to the material’s height via light scanner

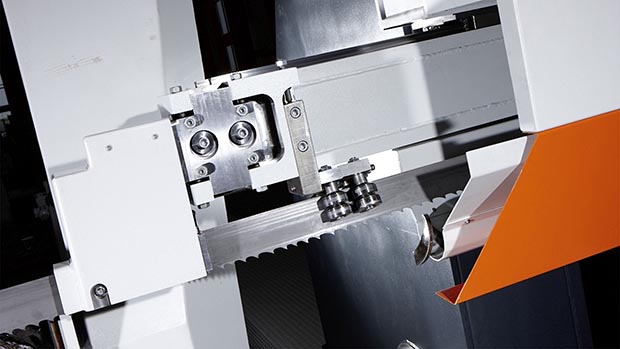

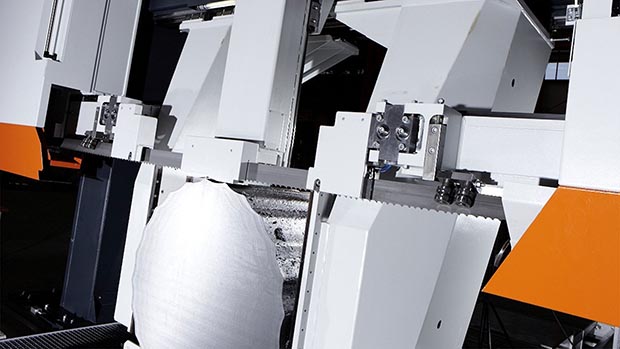

- hydraulically pre-tensioned carbide slideways guiding of saw blade
- hydraulic and electronic monitoring of saw blade tensioning
Downloads
Technical Data

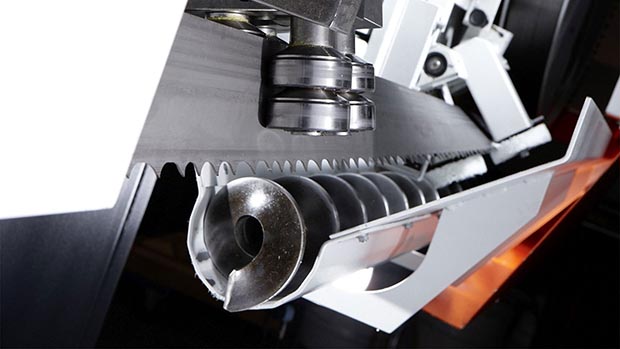

| Cutting range round | ||
| 2060 in | 81.1 in | |
| Cutting range square | 2060 x 2060 mm | 81.1 x 81.1 in |
| Cutting range flat | 2060 x 2060 mm | 81.1 x 81.1 in |
| Clamping range | 500 - 2060 mm | 19.69 - 81.1 in |
| Smallest diameter to be cut | 500 mm | 19.69 in |
| Shortest length of cut-off piece | 10 mm | 0.39 in |
| Minimal remnant length, individual cut | 20 mm | 0.79 in |
| Minimal remnant length, automatic operation | 100 mm | 3.94 in |
| Length | 9800 mm | 385.83 in |
| Width | 7620 mm | 300 in |
| Height, head in highest position | 5495 mm | 216.34 in |
| Material support height | 700 mm | 27.56 in |
| Total weight | 50000 kg | 110231.13 lbm |
| Table size, length | 5100 mm | 200.79 in |
| Table size, width | 2100 mm | 82.68 in |
| Moving range | 4100 mm | 161.42 in |
| Carrying capacity | 140 t | 0.31 lbm |
| Total connected load | 40 kW | 53.64 hp |
| Saw motor | 22 kW | 29.5 hp |
| Cutting speed infinitely variable with 50/60 Hz | 8 - 80 m/min | 26.25 - 262.47 ft/min |
| Dimensions of saw blade | 17424 x 80 x 1.6 mm | 685.98 x 3.15 x 0.06 ft/min |
| Or (to be mentioned in the order) | 17424 x 100 x 1.6 mm | 685.98 x 3.94 x 0.06 ft/min |
| Cutting feed via ball screw: | infinitely variable | |
| Saw blade guide: | carbide tipped, exchangeable, pivotable by 90° to one side (option) | |
| Saw blade tension: | hydraulic | |
| Cleaning of saw blade: | by a twin brush which is easy to exchange, motor-driven |
