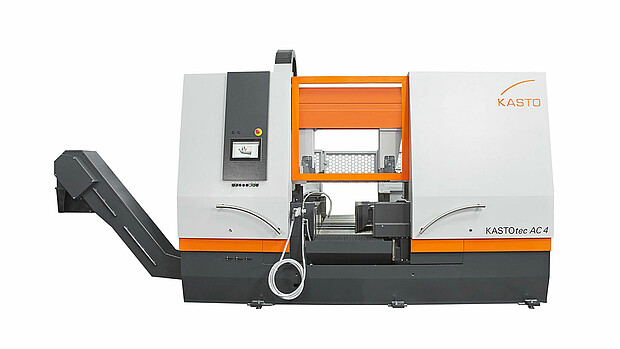

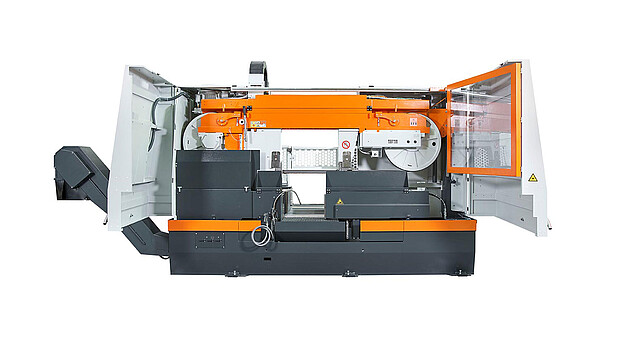

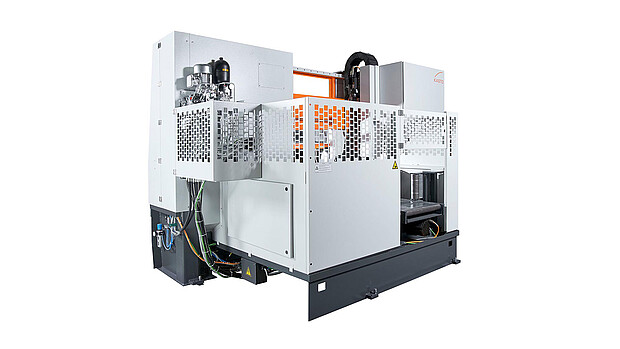

KASTOtec AC 4
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel, Steels for special application |
| Material width: | 430 mm / 16.93 inch |
| Material height: | 430 mm / 16.93 inch |
Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in horizontal direction, for cutting of round, square and flat material, of tubes and profiles of all qualities, particularly for tool steels and material which is difficult to cut such as titanium, Hastelloy, Inconel etc.
- The machine offers all well-known features of the KPC package (KASTO performance cutting)

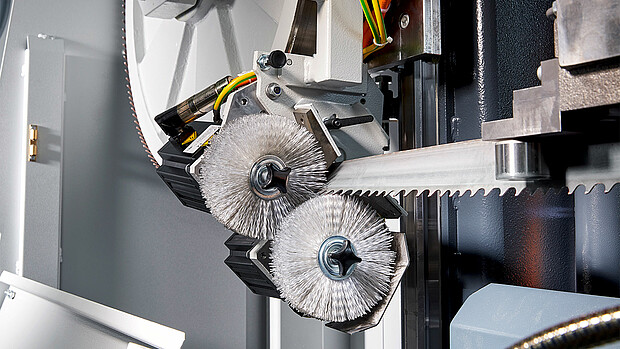

- Sawband guide via hydraulically pretensioned carbide slideways

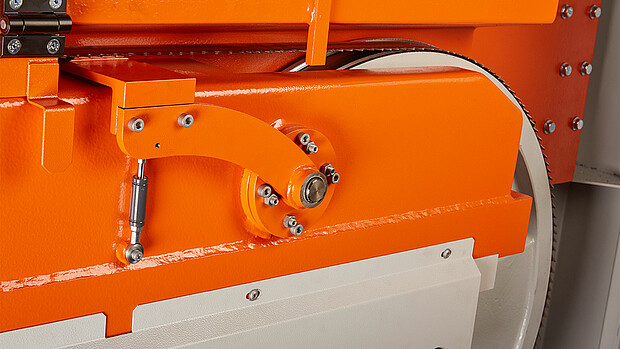

- Electronic monitoring of the hydraulic blade tension
- Infinitely variable cutting speed, to be adjusted at central control panel

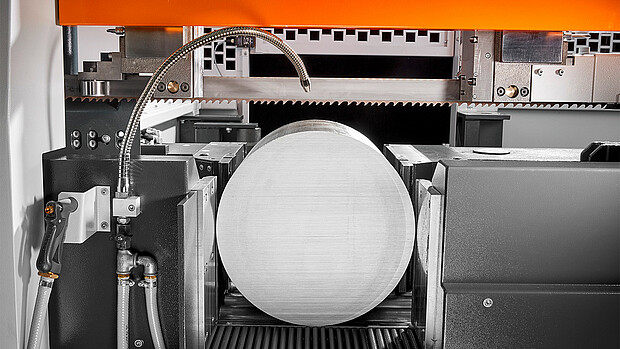

- Hydraulic horizontal vices, clearance stroke is standard
Downloads
Technical Data
| Cutting range round | 430 mm | 16.93 in |
| Cutting range square (W x H) | 430 x 430 mm | 16.93 x 16.93 in |
| Cutting range flat (W x H) | 430 x 430 mm | 16.93 x 16.93 in |
| Clamping range | 0 - 430 mm | 0 - 16.93 in |
| Smallest size to be cut | 10 x 10 mm | 0.39 x 0.39 in |
| Shortest length of cut-off piece | 6 mm | 0.24 in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 35 mm | 1.38 in |
| Shortest remnant length individual cut | 10 mm | 0.39 in |
| Length | 2166 mm | 85.28 in |
| Width incl. chip conveyor | 4717 mm | 185.71 in |
| Height | 2602 mm | 102.44 in |
| Material support height | 700 mm | 27.56 in |
| Total weight | 4850 kg | 10692.42 lbm |
| Total connected load | 25 kW | 33.53 hp |

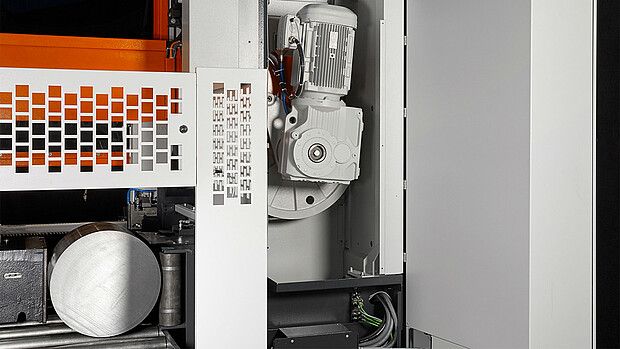

| Power of saw motor | 15 kW | 20.12 hp |
| Power at running wheel | 14 kW | 18.77 hp |
| Cutting speed infinitely variable with 50 or 60 Hz | 30 - 300 m/min | 98.43 - 984.25 ft/min |
| Optional cutting speed | 8 - 80 m/min | 26.25 - 262.47 ft/min |
| Saw feed speed | 0.5 - 300 m/min | 1.64 - 984.25 ft/min |
| Automatic material feed length, single stroke | 600 mm | 23.62 in |
| Automatic material feed length, multiple stroke | 9999 mm | 393.66 in |
| Dimensions of saw blade | 6830 x 41 x 1.3 mm | 268.9 x 1.61 x 0.05 in |
