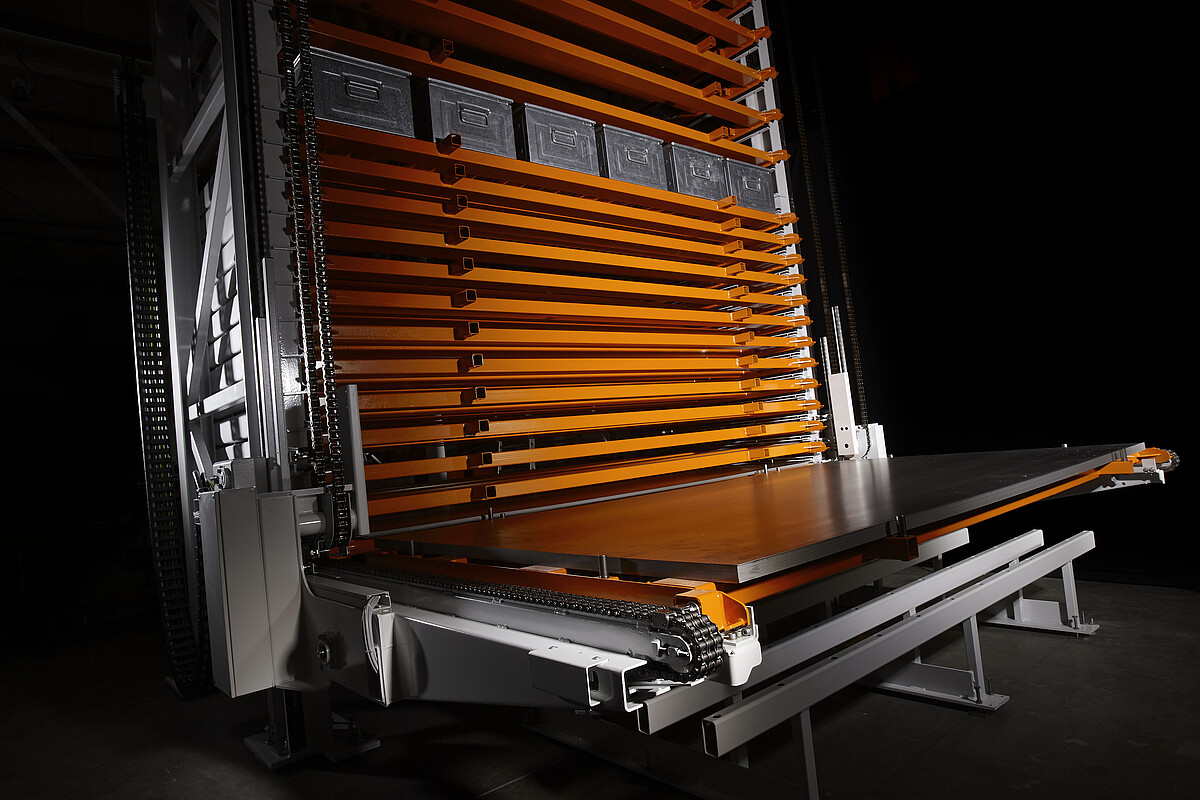

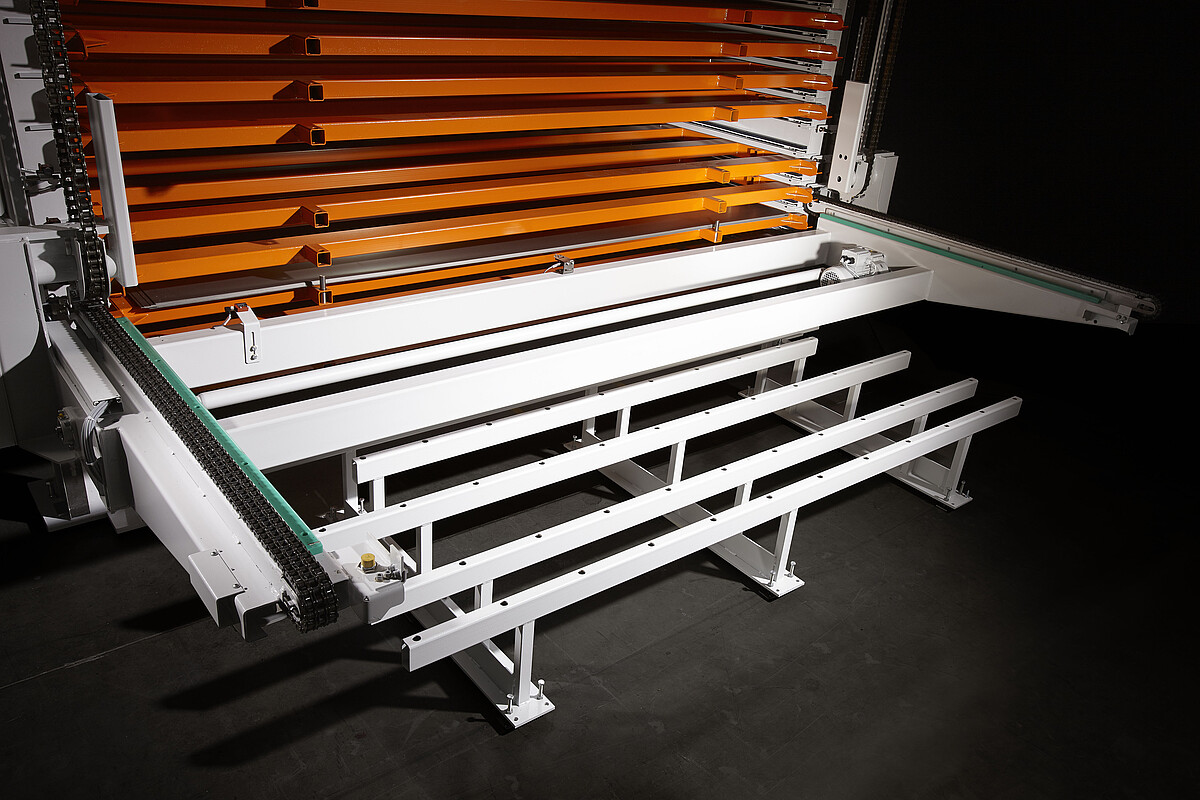

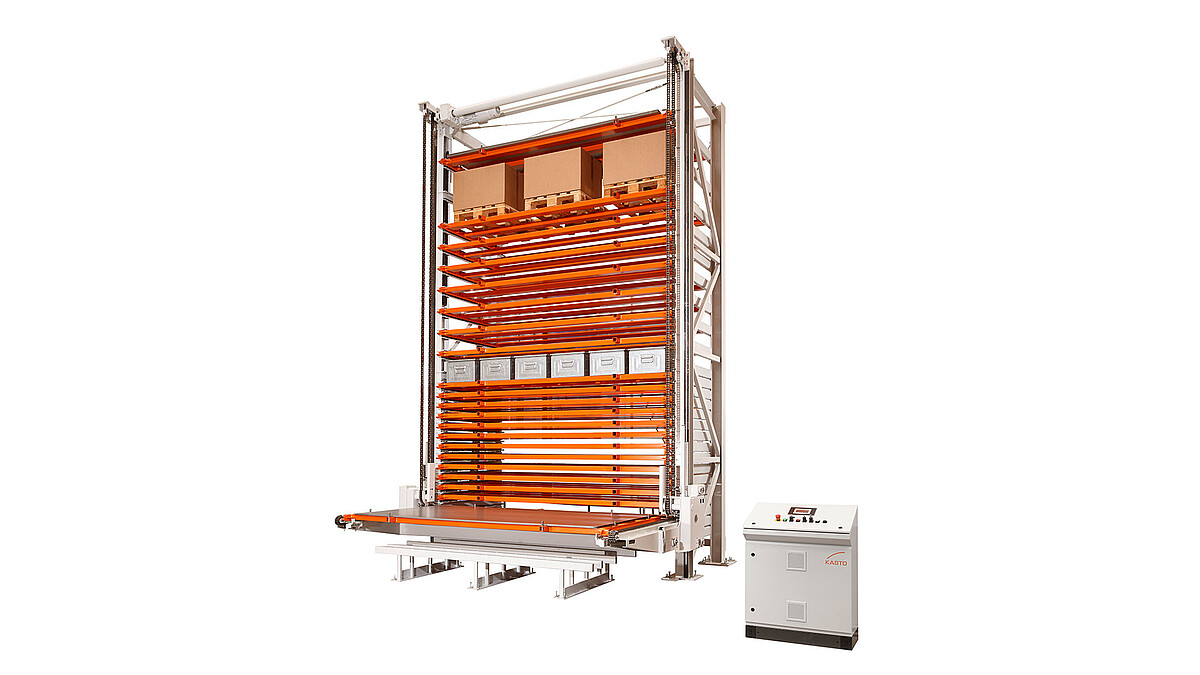

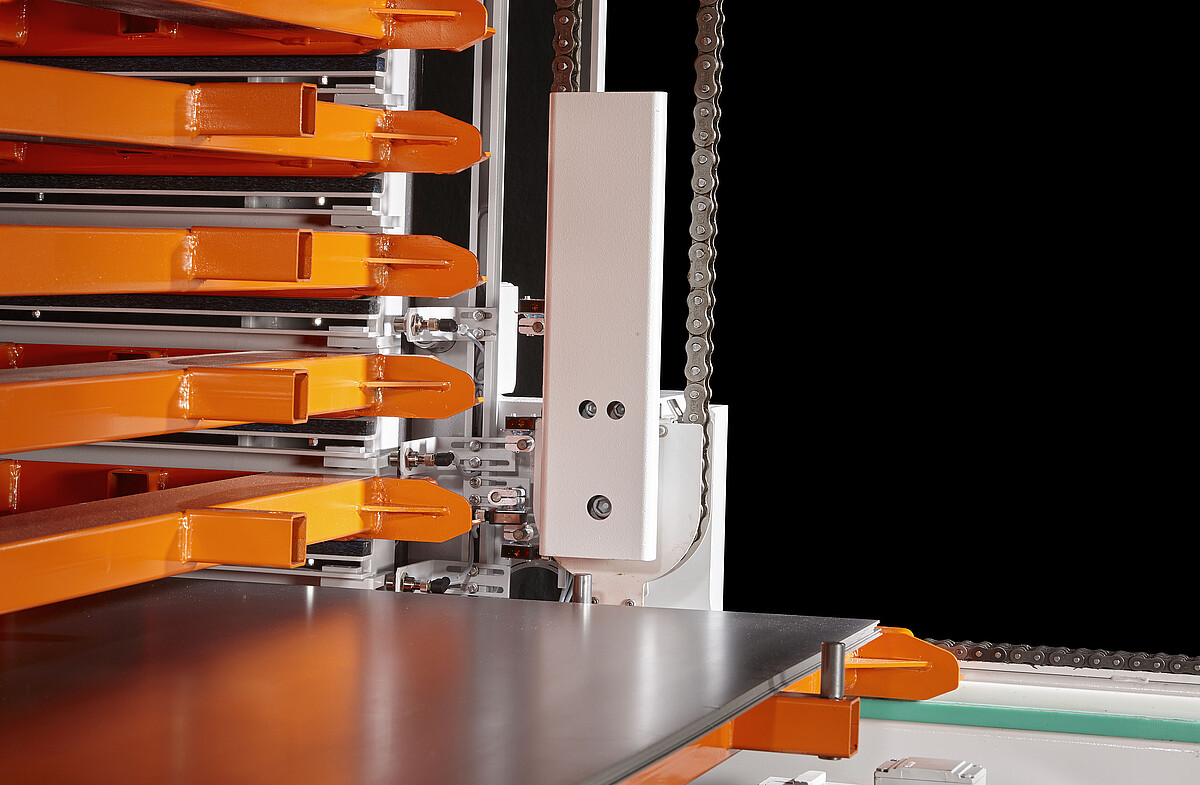

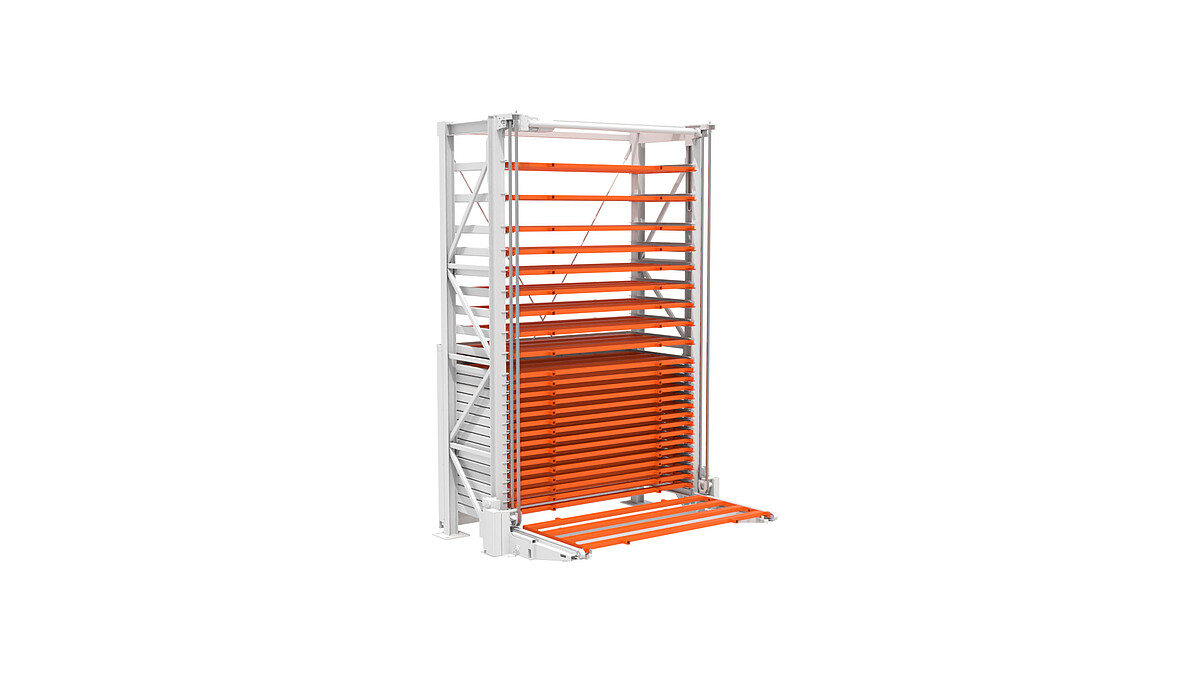

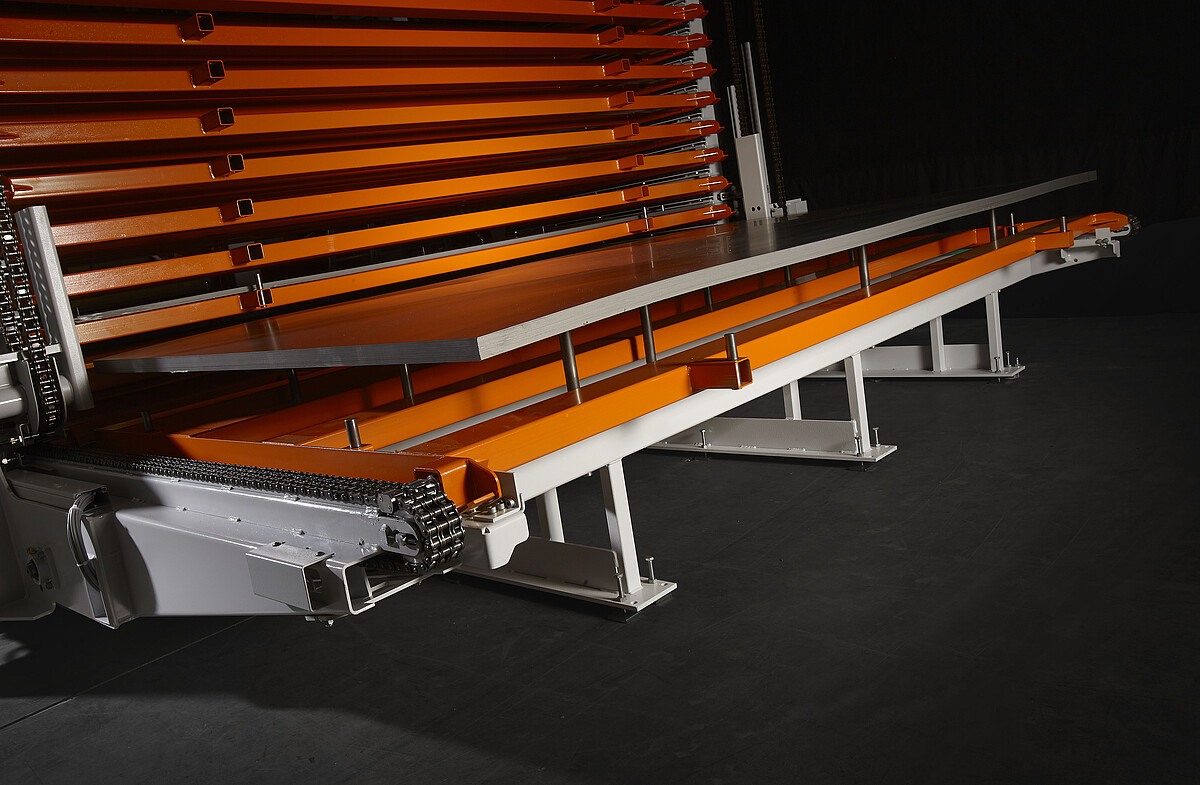

KASTOecostore sheet metal
| Type: | Sheet metal storage |
|---|---|
| Storage Type: | Tower system |
| Loading per storage: | 1.2 t - 3 t / 2645.55 lbs - 6613.87 lbs |
| Storage length: | 3 m - 4 m / 9.84 ft - 13.12 ft |
| Storage size: | 5 - 52 Locations |
Storage room economically used.
This standardized storage system is suited for all applications where a high variety of materials like sheet metal need to be stored. A high storage density on smallest area is achieved by height-optimized compartment division. This leads to more order, cleanliness and safety.
All advantages at a glance:
- Economic automatic storage system for sheet metal
- Plug-in modular pallet supports
- Loading and unloading always at an ideal height

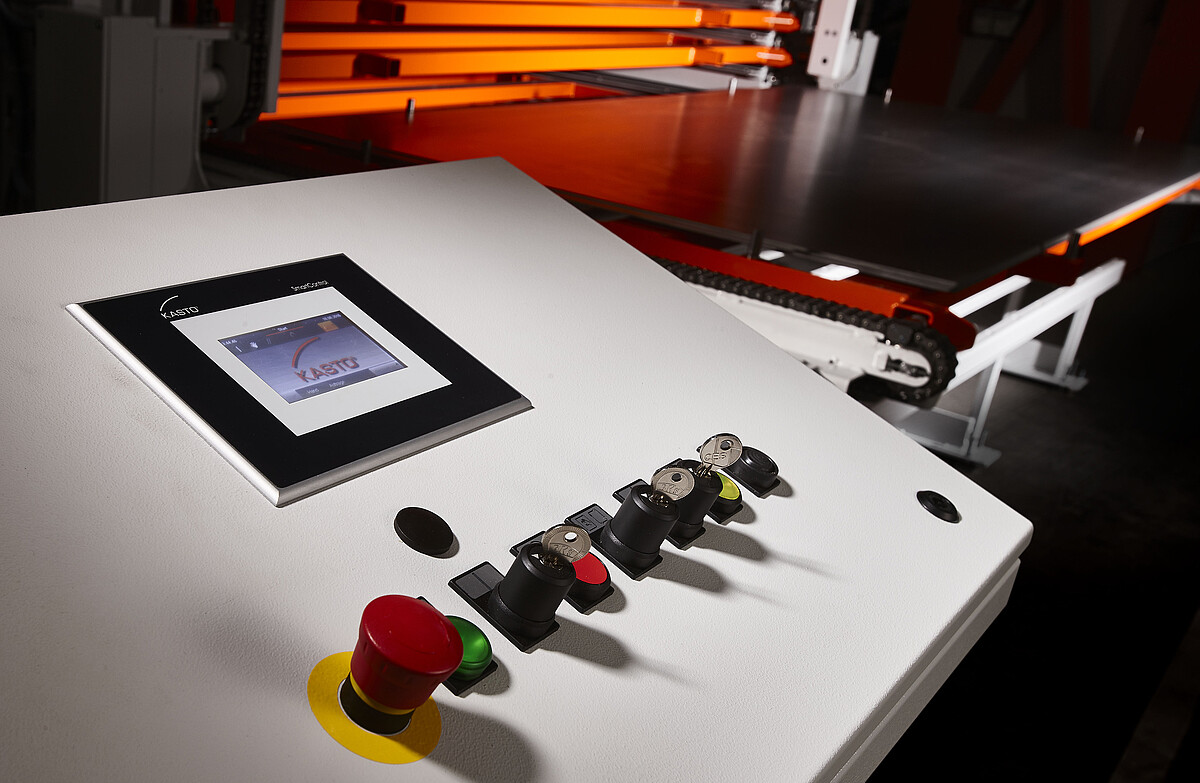

- Easy operating by means of selection of storage place and approval key at dead man’s operation
- Saving of time due to direct access without additional lifting devices
- Small space requirements by consequent height utilization
Downloads
Technical Data
| Loading per storage location | 1,2 / 3 t | 2646 / 6615 lbs |
| Economic storage size | 5 - 52 locations | 5 - 52 locations |
| Economic storage length | 4 m | 13,12 ft |
| Economic system height | bis 8 m | bis 26,25 ft |
| Rack supported design possible | nein | nein |
| Number of pick per h (per OGC) | 1 - 15 pro/h | 20 - 60 pro/h |
| Partially integrated saw possible | ja | ja |
| Fully integrated saw possible | nein | nein |
