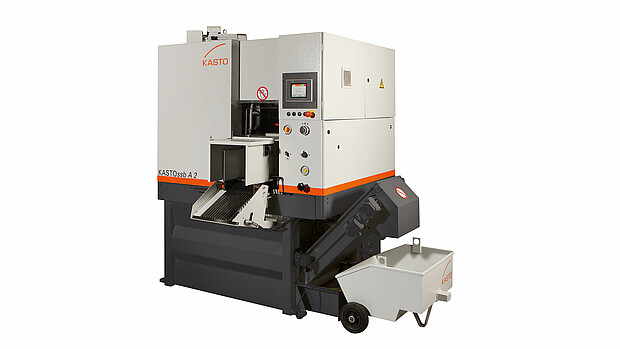

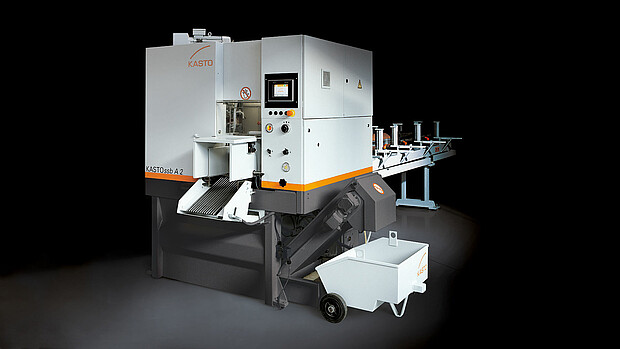

KASTOssb A 2
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Vertical cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel, Steels for special application |
| Material width: | 260 mm / 10.24 inch |
| Material height: | 200 mm / 7.87 inch |
Fully hydraulic and automatic high-performance bandsawing machine of robust construction, with saw blade moving parallel in vertical direction, for cutting of profiles, tubes and solid material of all qualities, including difficult to cut material (e.g. titanium, Hastelloy, Inconel).
- Totally enclosed installation provides high safety and excellent noise damping

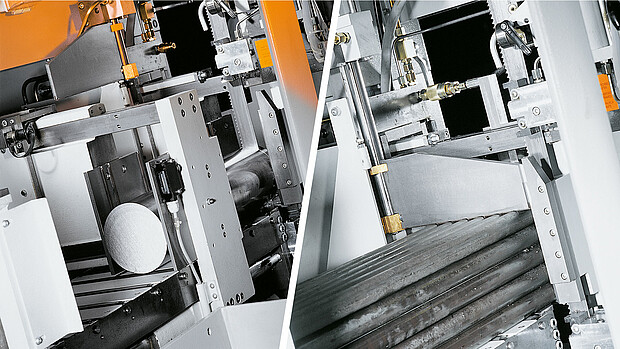

- Sturdy clamping vice system permits high cutting accuracy and reliable clamping of the workpiece
- Vertically cutting saw blade optimizes chip flow
- Blade exchange is easy and virtually maintenance free
- Minor coolant loss and easy cleaning
Downloads
Technical Data
| Cutting range round | 260 mm | 10.24 in |
| Cutting range square | 260 x 260 mm | 10.24 - 10.24 in |
| Cutting range bundle width | 150 - 260 mm | 5.91 - 10.24 in |
| Cutting range bundle height | 0 - 260 mm | 0 x 10.24 in |
| Clamping range | 0 - 260 mm | 0 x 10.24 in |
| Smallest diameter to be cut | 10 mm | 0.39 in |
| Shortest length of cut-off piece | 5 mm | 0.2 in |
| Minimal remnant length, automatic operation | 110 mm | 4.33 in |
| Minimal remnant length, single cut | 10 mm | 0.39 in |
| Length | 1670 mm | 65.75 in |
| Width | 2080 mm | 81.89 in |
| Height | 2130 mm | 83.86 in |
| Material support height above floor | 950 mm | 37.4 in |
| Weight | 2200 kg | 4850.17 lbm |
| Total connected load | 9.5 kW | 12.74 hp |
| Drive power saw blade | 5.5 kW | 7.38 hp |
| Cutting speed infinitely variable | 15 - 125 m/min | 49.21 - 410.1 ft/min |
| Automatic feed length, single stroke | 600 mm | 23.62 in |
| Multiple feed length | 9999 mm/min | 32.81 ft/min |
| Clamping force of machine vice | 1100 - 6800 N | 811.32 - 5015.42 ft/lbs |
| Clamping force of feed vice | 1100 - 6800 N | 811.32 - 5015.42 ft/lbs |
| Min. remnant length | 70 mm | 2.76 in |
| Dimensions of saw blade | 4115 x 41 x 1.3 mm | 162.01 x 1.61 x 0.05 in |
