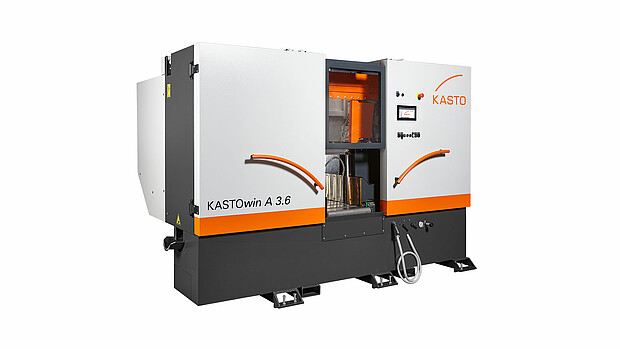

KASTOwin A 3.6
| Saw type: | Bandsaw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 360 mm / 14.17 inch |
| Material height: | 360 mm / 14.17 inch |

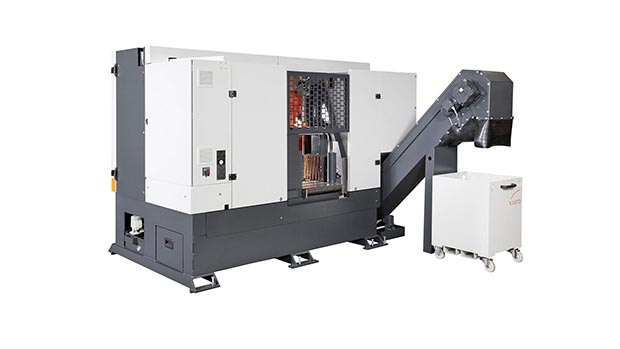

Automatic high-performance bandsawing machine for serial cutting of solids, tubes and profiles in material qualities which are easy to difficult to cut. The standard precise linear guides (re-circulating ball units with grease lubricated guide carriage) guarantee maximum life.
The standard ProControl 9” offers the optimum operation of the machine.
Easy, clearly arranged and guided job entry.
After making the desired number of cuts, the machine shuts off automatically. By reducing set-up times to a minimum, maximum cutting performances are achieved in automatic mode. The precise drive via ball bearing spindle in material feed guarantees an accurate material length positioning.
Frequency controlled spur gear driving with overload monitoring and clamping pressure monitoring for blade clamping and both vices belong to the standard equipment for working processes regarding cutting of individual pieces, smaller and average lot sizes and large series.
An infinitely variable electromechanic saw feed with servomotor and ball bearing spindle offers the best conditions for an efficient, sensitive and tool-saving cutting operation.
Technical Data
| Cutting range 90° round | 360 mm | 14.17 in |
| Cutting range 90° flat (W x H) | 360 x 360 mm | 14.17 x 14.17 in |
| Clamping range | 0 - 360 mm | 0 x 14.17 in |
| Smallest cut-off length | 10 mm | 0.39 in |
| Smallest dimension to be cut | 10 x 10 mm | 0.39 x 0.39 in |
| Shortest remnant length in automatic operation (possible only if the material has a perfect geometric surface) | 35 mm | 1.38 in |
| Shortest remnant length individual cut | 10 mm | 0.39 in |
| Length | 1650 mm | 64.96 in |
| Width | 2900 mm | 114.17 in |
| Height | 2030 mm | 79.92 in |
| Material support height | 700 mm | 27.56 in |
| Weight | 3450 kg | 7605.95 lbm |
| Saw motor, frequency controlled | 4 kW | 5.36 hp |
| Total power | 6 kW | 8.05 hp |
| Material feed length, individual cut | 500 mm | 19.69 in |
| Multiple feed | 9999 mm | 393.66 in |
| Machine roller conveyor, length | 1100 mm | 43.31 in |
| Ball-bearing massive transport rollers | 8 pieces | 8 pieces |
| Dimensions of rollers | 60 mm | 2.36 in |
| Distance between rollers | 135 mm | 5.31 in |
| Cutting speed, infinitely adjustable | 12 - 150 m/min | 39.37 - 492.13 ft/min |
| Dimensions of saw blade | 6096 x 34 x 1.1 mm | 240 x 1.34 x 0.04 in |
| Dimensions of saw blade on request | 6096 x 41 x 1.3 mm | 240 x 1.61 x 0.05 in |
| Cutting feed | electrically adjustable via ball bearing spindle | |
| Material feed | ball bearing spindle | |
| Material clamping | hydraulic | |
| Saw blade cleaning | self adjusting chip brush, driven by electric motor |
