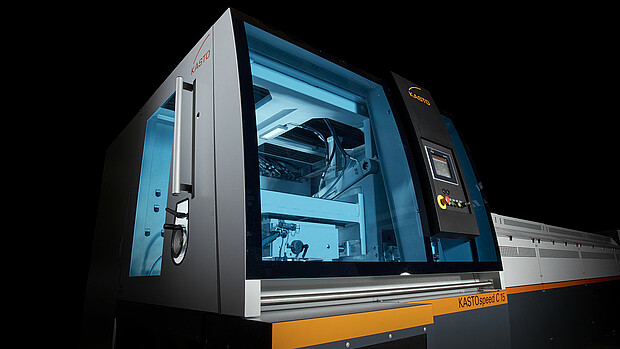

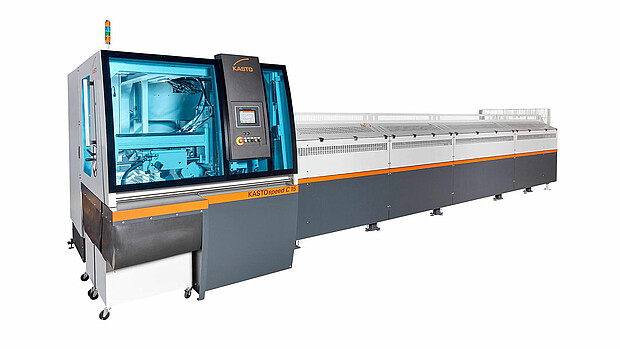

KASTOspeed C 15
| Saw type: | Circular saw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 155 mm / 6.1 inch |
| Material height: | 135 mm / 5.31 inch |
KASTOspeed C 15 automatic circular saws fulfill the highest requirements in power and efficiency when cutting steel with tensile strengths up to approx. 1.400 N/mm (200,000 psi) also highalloyed steel using one-way carbide saw blades and HSS solid saw blades.

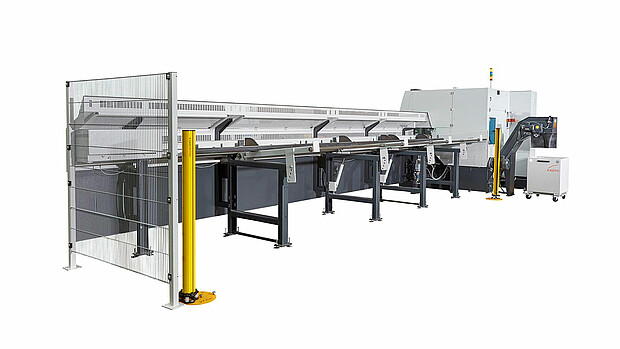

- Safe work piece infeed using well-proven inclined magazines
- Automatic separation and loading onto infeed roller conveyor
- Freely selectable trim cut, remnant recognition as well as automatic sorting of trim cuts and remnants.
- PLC control and operator panel
Downloads
Technical Data
| Thin-cut saw blade diameter carbide 360 mm/14,17 in | ||
| Cutting width | 2,6 mm | 0,1 in |
| Saw blade bores | 50/4 x 14/80 mm | 1,97/0,16 x 0,55/3,15 in |
| Saw blade clamping flange | 128 mm | 5,04 in |
| Cutting range solid material, round | 20 - 100 Ø mm | 0,79 - 3,94 Ø in |
| Cutting range solid material, square | 20 - 80 mm | 0,79 - 3,15 in |
| Cutting range solid material, from | 20 x 20 mm | 0,79 x 0,79 in |
| Cutting range solid material, to | 100 x 80 mm | 3,94 x 3,15 in |
| Saw blade diameter carbide 425 mm/16,73 in | ||
| Cutting width | 2,7 mm | 0,11 in |
| Saw blade bores | 50/4 x 14/80 mm | 1,97/0,16 x 0,55/3,15 in |
| Saw blade clamping flange | 128 mm | 5,04 in |
| Cutting range solid material, round | 40 - 140 Ø mm | 1,57 - 5,51 Ø in |
| Cutting range solid material, square | 40 - 120 mm | 1,57 - 4,72 in |
| Cutting range solid material, from | 40 x 20 mm | 1,57 x 0,79 in |
| Cutting range solid material, to | 140 x 100 mm | 5,51 x 3,94 in |
| Saw blade diameter carbide 460 mm/18,11 in | ||
| Cutting width | 2,7 mm | 0,11 in |
| Saw blade bores | 50/4 x 14/80 mm | 1,97/0,16 x 0,55/3,15 in |
| Saw blade clamping flange | 128 mm | 5,04 in |
| Cutting range solid material, round | 40 - 153 Ø mm | 1,57 - 6,02 Ø in |
| Cutting range solid material, square | 40 - 135 mm | 1,57 - 5,31 in |
| Cutting range solid material, from | 40 x 20 mm | 1,57 x 0,79 in |
| Cutting range solid material, to | 155 x 135 mm | 6,1 x 5,31 in |
| Length | 1700 mm | 66,93 in |
| Width | 2500 mm | 98,43 in |
| Height | 2050 mm | 80,71 in |
| Material support height above floor | 1100 mm | 43,31 in |
| Weight | 3000 kg | 6613,87 lbm |
| Total connected load | 25 kW | 33.53 hp |
| Drive power saw blade | 18.5 kW | 24.81 hp |
| Drive power hydraulic pump | 3.7/4.7 kW | 4.96/6.3 hp |
| Cutting speeds, infinitely adjustable (360 mm/14.17 in) | 20 - 145 m/min | 65.62 - 475.72 ft/min |
| Cutting speeds, infinitely adjustable (425 mm/16.73 in) | 24 - 165 m/min | 78.74 - 541.34 ft/min |
| Cutting speeds, infinitely adjustable (460 mm/18.11 in) | 26 - 180 m/min | 85.3 - 590.55 ft/min |
| Saw blade feed rate, infinitely adjustable | 50 - 2000 mm/min | 0.16 - 78.74 ft/min |
| Rapid return | 10000 mm/min | 32.81 ft/min |
| Workpiece clamping | ||
| Clamping force, infeed side, vertical and horizontal each | 20000 N | 14751.24 ft/lbs |
| Min. remnant length | 70 mm | 2.76 in |
