KASTOspeed C 9
| Saw type: | Circular saw |
|---|---|
| Cutting option: | Straight cut |
| Automation: | Automatic |
| Materials: | Structural steels, Stainless steel, Tool steel |
| Material width: | 80 mm / 3.15 inch |
| Material height: | 85 mm / 3.35 inch |

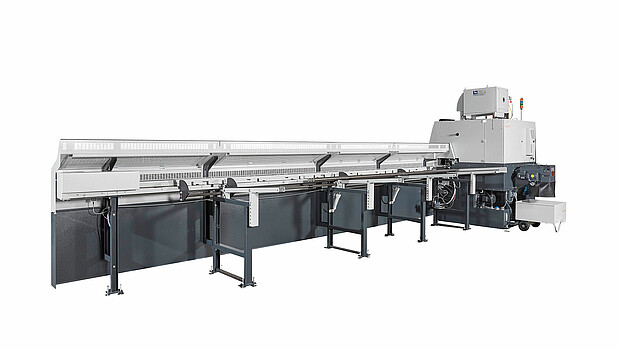

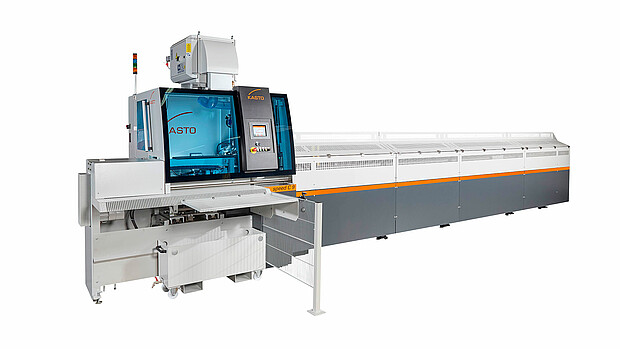

Large-scale production in continuous operation is accomplished by the KASTOspeed C 9 when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 90 mm (3½”).

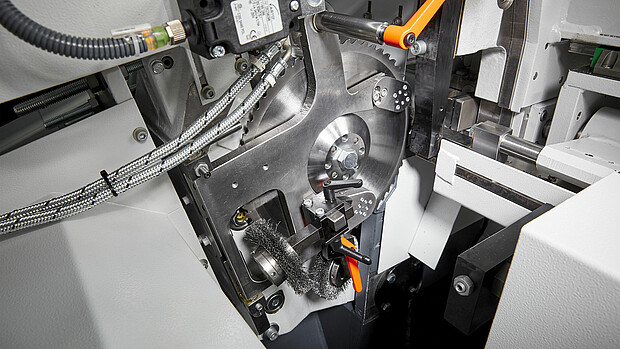

- Fast and precise cutting of large batches

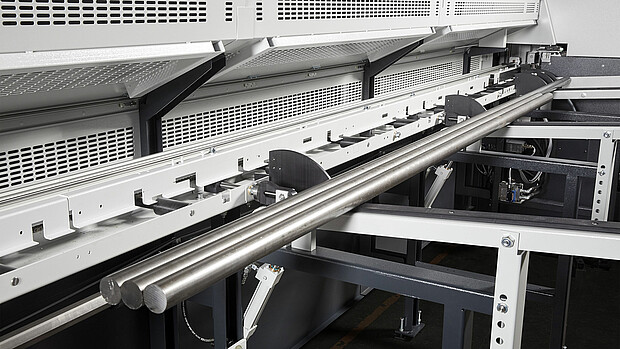

- Safe work piece infeed using well-proven inclined magazines

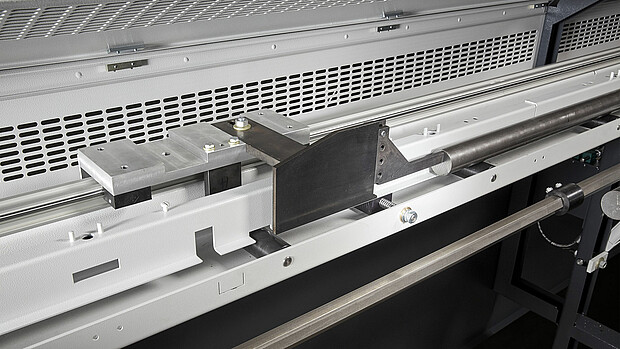

- Automatic separation and loading onto infeed roller conveyor

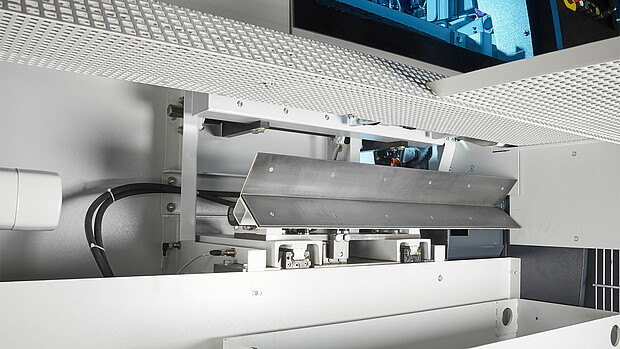

- Freely selectable trim cut, remnant recognition as well as automatic sorting of trim cuts and remnants.

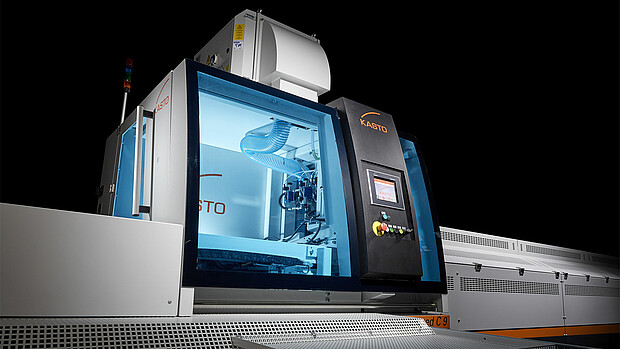

- PLC control and operator panel
Downloads
Technical Data
| Saw blade diameter 250 mm/9,84 in | ||
| Saw blade bores | 32/4 x 9/50 mm | 1,26/0,16 x 0,35/1,97 in |
| Saw blade clamping flange | 110 mm | 4,33 in |
| Cutting range rounds, solid bar | 15 - 50 Ø mm | 0,59 - 1,97 in |
| Cutting range squares, solid bar | 15 - 45 mm | 0,59 - 1,77 in |
| Cutting range rectangulars, solid bar min. | 15 x 15 mm | 0,59 x 0,59 in |
| Cutting range rectangulars, solid bar up to | 45 x 45 mm | 1,77 x 1,77 in |
| Saw blade diameter 285 mm/11,22 in | ||
| Cutting range | 32/4 x 9/50 mm | 1,26/0,16 x 0,35/1,97 in |
| Saw blade clamping flange | 110 mm | 4,33 in |
| Cutting range rounds, solid bar | 45 - 70 Ø mm | 1,77 - 2,76 in |
| Cutting range squares, solid bar | 15 - 70 mm | 0,59 - 2,76 in |
| Cutting range rectangulars, solid bar min. | 50 x 10 mm | 1,97 x 0,39 in |
| Cutting range rectangulars, solid bar up to | 15 x 65 mm | 0,59 x 2,56 in |
| Saw blade diameter 315 mm/12,4 in | ||
| Cutting range | 32/4 x 9/50 mm | 1,26/0,16 x 0,35/1,97 in |
| Saw blade clamping flange | 110 mm | 4,33 in |
| Cutting range rounds, solid bar | 65 - 90 Ø mm | 2,56 - 3,54 in |
| Cutting range squares, solid bar | 15 - 80 mm | 0,59 - 3,15 in |
| Cutting range rectangulars, solid bar min. | 60 x 10 mm | 2,36 x 0,39 in |
| Cutting range rectangulars, solid bar up to | 85 x 80 mm | 3,35 x 3,15 in |
| Length | 1600 mm | 62,99 in |
| Width | 1950 mm | 76,77 in |
| Height | 2150 mm | 84,65 in |
| Material support height above floor | 1100 mm | 43,31 in |
| Weight | 2600 kg | 5732,02 lbm |
| Drive power saw blade | 7,5 kW | 10,06 hp |
| Cutting range rectangulars, Solid bar min. | 2,6/3,2 kW | 3,49 x 4,29 hp |
| Cutting speed, infinitely adjustable (250 mm/9,84 in) | 16 - 178 m/min | 52,49 - 583,99 ft/min |
| Cutting speed, infinitely adjustable (285 mm/11,22 in) | 18 - 203 m/min | 59,06 - 666,01 ft/min |
| Cutting speed, infinitely adjustable (315 mm/12,40 in) | 20 - 225 m/min | 65,62 - 738,19 ft/min |
| Saw blade feed rate, infinitely adjustable | 50 - 2000 mm/min | 1,97 - 78,74 in/min |
| Rapid return | 8500 mm/min | 334,65 in/min |
| Workpiece clamping | ||
| Clamping force, infinitely adjustable | 2000 N | 1475,12 ft/lbs |
| Bar feed | ||
| Bar pusher carriage feed motion | 5 - 50 m/min | 16,4 - 164,04 ft/min |
| Rapid return speed | 150 m/min | 492,13 ft/min |
